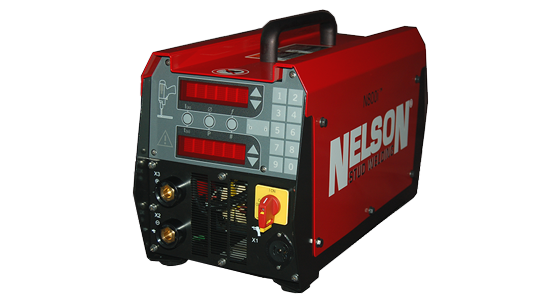

Nelson Inverter Equipment N800i
Nelson Inverter Equipment N800i

NELSON · Stud Welding Equipment

Nelson Inverter Equipment N800i

Stud Range: 3/16” - 1/2” (4 mm - 12 mm)

Fitur

Stud Range: 3/16” - 1/2” (4 mm - 12 mm)

A 2-year or 1,000,000-weld warranty comes with all Nelson® equipment. The welding processes supported by this unit are Drawn Arc, Gas Arc, and Short-Cycle. Its lightweight portable design allows a single person to carry the complete welding system. It is the third-generation all-digital inverter system that delivers 50% more power than comparable products available.

Spesifikasi Teknis

Specification

Input Power 3 phase 200-575V, 50/60 Hz @15/30A

  • Welding Current 50-800A
  • Welding Time 5-1000 ms
  • Stud Range #10 to 1/2” (2-12 mm)
  • Duty Cycle
    • 1/2” (13 mm) 3 per minute
    • 3/8” (10 mm) 6 per minute
    • 1/4” (6 mm) 12 per minute
  • Available in Europe
Welder SpecificationsNelweld N800i
Stud Diameter12 Gauge to 1/2" (3-12 mm)
Welding ProcessDrawn Arc, Short Cycle, Gas Arc
Welding Current (I)50A—800A Continuously Adjustable
Welding Time (T)5ms—1000ms
Weight (welder only)40 lbs (18kg) Without Input Cord
Dimensions (L x W x H)13" (33cm) x 10" (25cm) x 20.5" (52cm)
Weld Rates 1/2" (12.7 mm)3 Studs/Min
Weld Rates 3/8" (10 mm)6 Studs/Min
Weld Rates 1/4" (6 mm)12 Studs/Min
Input Power3 Phase 208-230V 50/60 Hz 30A / 3 Phase 400-460V 50/60 Hz 15A / 3 Phase 575V 50/60 Hz 15A
MaterialSteel, Stainless Steel, Aluminum, Heat-Resistant Steel, Advanced High Strength Steel
GunLight Duty Pinning Gun, Standard Duty NS-40
Enclosure RatingIP23S
OptionsInput voltages 230V, 460V, 575V, and 400V CE; power connectors Dinse, Camlok; gun connectors Hubble, R&S, Binder, Harting; gas control kit; Nelware PC software; mobility cart; protective bracket
