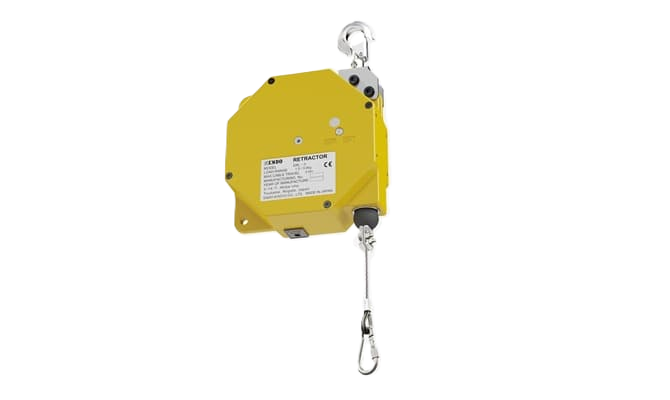

ERL SERIES
Product Description
The retractor is a spring balancer whose tension of a spring is changed with an extension of a wire rope.
Maximum wire rope travel is relative to the setting of the spring tension. (See catalog).
Fall-arrest device is equipped on ERL-6S, 8S, 11S and 14S.
The ratchet stopper device can be turned on or off according to your requirement.
The top hook can be detached without disassembling the retractor body.
ERL-8 is a successor model to ER-10A/10B.
Technical Specifications
SPECIFICATION
| Model | Fall prevention device | CE Certification | Capacity (kg) | Wire rope travel (m)※ | Mass (kg) |
| ERL-3 | - | Yes | 1.5～3.0 | 4.0 | 3.8 |
| ERL-6 | - | - | 3.0～6.0 | 4.0 | 4.4 |
| ERL-8 | - | - | 5.0～8.0 | 4.0 | 4.8 |
| ERL-11 | - | - | 8.0～11.0 | 4.0 | 5.1 |
| ERL-14 | - | - | 11.0～14.0 | 4.0 | 5.1 |
| ERL-6S | Yes | Yes | 3.0～6.0 | 4.0 | 4.4 |
| ERL-8S | Yes | Yes | 5.0～8.0 | 4.0 | 4.8 |
| ERL-11S | Yes | Yes | 8.0～11.0 | 4.0 | 5.1 |
| ERL-14S | Yes | Yes | 11.0～14.0 | 4.0 | 5.1 |
