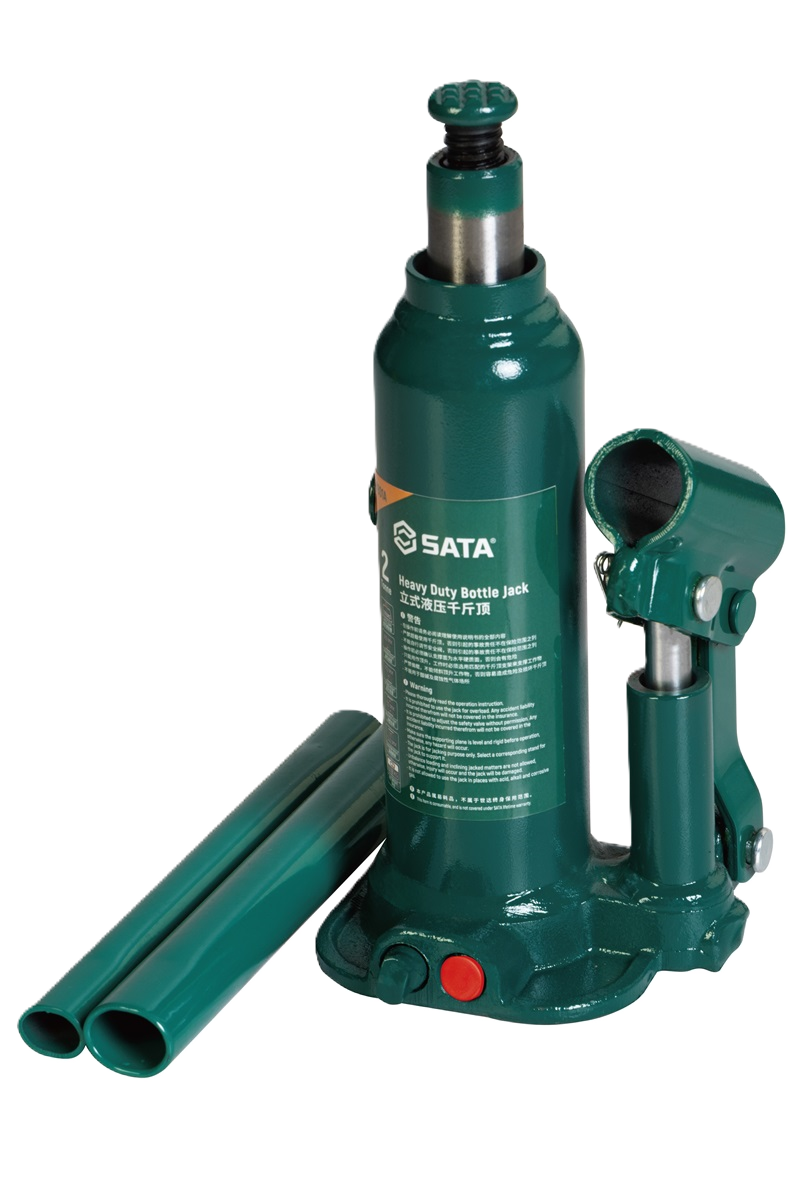

97801A 2 Tonne Hydraulic Bottle Jack

Click to zoom • Drag to pan

No catalog available
SATA Industrial Tools Hydraulic & Lifting Available

97801A 2 Tonne Hydraulic Bottle Jack

Product Description

Introduction
●        The base is forged from high-quality steel, and the newly designed hydraulic circuit reduces issues such as oil leakage caused by sealing problems. This improves service life and simplifies maintenance and repair.
●        The transverse jack is designed for vertical or 0-90° lateral loads. For lateral use, ensure the safety valve and pumping handle are facing upward during operation.
●        Note: Vertical jacks with capacities ranging from 2 tons to 20 tons can pass a 1.5x rated load dynamic overload test. Vertical jacks with capacities of 32 tons and 50 tons can pass a 1.25x rated load dynamic overload test.

Technical Specifications

Specification

Product No97801A
Capacity2T
Product Size (MM)94.5x84x180
Max. Height (MM)342
Adjustable Height (MM)50
N.W. (KG)2.18
Warranty TermsThis product is consumable, not within SATA lifetime warranty.
