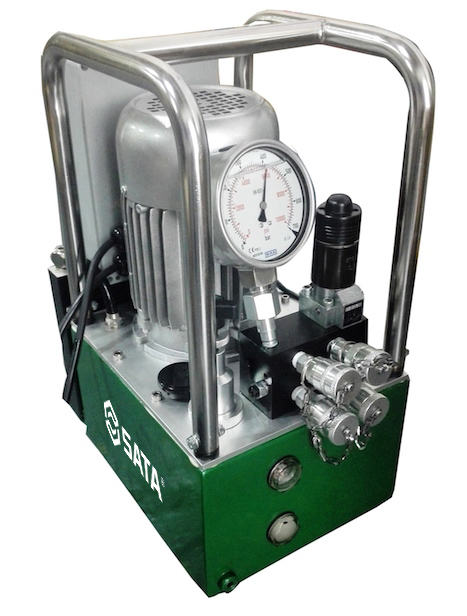

99032 Electric Hydraulic Pump（Brushless Motor）
Product Description
Introduction
● Unique external pressure regulating valve, ensuring high pressure regulating accuracy
● Built-in safety overflow valve, effectively avoiding pressure regulation beyond the normal range and ensuring product and personal safety
● Brushless capacitor motor with automatic idle shutdown function and a safe start button for quick restart
● Built-in air cooling system, ensuring effective radiation and effectively improving the overall safety
● Large flow design, effectively improving work efficiency
Technical Specifications
Specification
| Product No | 99032 |
| MADE IN | Taiwan,China |
| RPM | 1800 |
| dB | 70 |
| Motor kW | 1.1 |
| Ampere | 13/220V |
| Flux（L/min）70（BAR） | 16 |
| Flux（L/min）350（BAR） | 1.5 |
| Flux（L/min）700（BAR） | 0.85 |
| Fuel tank（L） | 8 |
| Available Oil Quantity（L） | 7 |
| Weight including oil（KG） | 33 |
| Warranty Terms | 12 months warranty |
