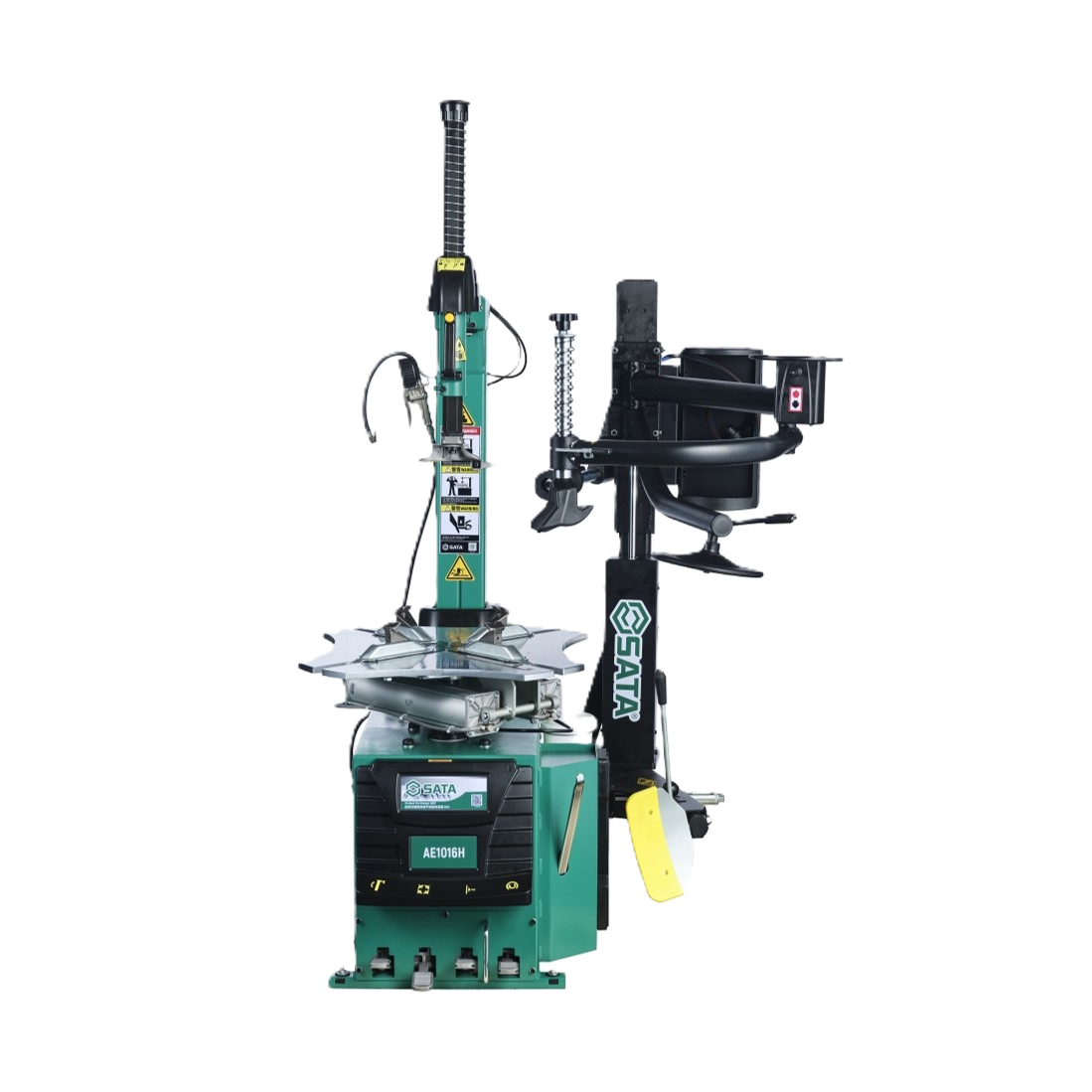

AE1016H Tilt-back Tire Changer with Helper (220V)
Product Description
Introduction
● Birdhead-shaped puller of retroverted tire changer without radial deformation, avoiding damages of rims and available for removal and installation of high-end and luxury tires
● Adjustable alloy steel jaws, suitable for a wide range of applications
● Alloy steel birdhead-shaped puller, ensuring a longer service life
● Torx large disc with wear resistant gasket and scale, allowing accurate alignment
● Chassis stepping function, enabling stop in multiple positions and improving the clamping efficiency
● Large aluminum cylinder, highly resistant to corrosion
● Rear cover with quick exhaust valve as standard configuration, improving bead-breaking efficiency
● Bead breaker with two-position regulation, applicable in a wider range
● High pressure resistant oil-water separator with metal protection cover, not easy to be damaged
Technical Specifications
Specification
| Product No | AE1016H |
| Package dimensions | 1180x1000x1000MM |
| Operating noise | <70db |
| Push-pull force of large cylinders | 2100KGf |
| Large disk rotation speed | 6.5rpm |
| Maximum tire diameter | 40"(1040MM) |
| Warranty Terms | 1 year (except consumable parts) |
| Operating air pressure | 8-10bar |
| Oil-water separator pressure resistance | 12KGf/CM² |
| Diameter of the outer clamping rim | 11"-24" |
| Large disk size | 22" built-in adjustable jaws |
| Gross/Net weight | 303/260KG |
| Internal support hub diameter | 13"-26" |
| Tire width | 3"-15" |
