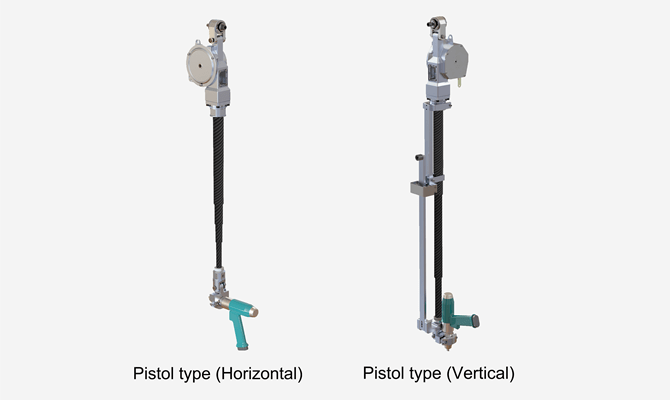

HKC Series - Counter Reaction Balancer
Product Description
## Innovative design integrates torque reaction arm and spring balancer. The arm can accommodate difficult work environments that cause oblique pulling movements or swaying and shaking of the tool.
Technical Specifications
SPECIFICATION
| Model | Capacity (kg) | Max tightening torque (N.m) | Stroke (mm) | Max length (mm) | Min length (mm) | No.of Rod | Mass (kg) |
| HKC30N1800-25 | 0.5～2.5 | 30 | 870 | 1747 | 877 | 3 | 4.9 |
| HKC30N1800-45 | 2.5～4.5 | 30 | 870 | 1747 | 877 | 3 | 5.1 |
| HKC30N1800-65 | 4.5～6.5 | 30 | 870 | 1747 | 877 | 3 | 5.1 |
| HKC60N1800-20 | 0.5～2.0 | 60 | 1000 | 1761 | 761 | 4 | 5.3 |
| HKC60N1800-40 | 2.0～4.0 | 60 | 1000 | 1761 | 761 | 4 | 5.5 |
| HKC60N1800-60 | 4.0～6.0 | 60 | 1000 | 1761 | 761 | 4 | 5.5 |
| HKC60N2500-20 | 0.5～2.0 | 60 | 1120 | 2470 | 1350 | 3 | 5.7 |
| HKC60N2500-40 | 2.0～4.0 | 60 | 1120 | 2470 | 1350 | 3 | 6.0 |
| HKC60N2500-60 | 4.0～6.0 | 60 | 1120 | 2470 | 1350 | 3 | 6.0 |
| HKC120N2300-40 | 2.0～4.0 | 120 | 1220 | 2261 | 1041 | 3 | 5.1 |
| HKC120N2300-60 | 4.0～6.0 | 120 | 1220 | 2261 | 1041 | 3 | 5.3 |
| HKC120N2300-80 | 6.0～8.0 | 120 | 1220 | 2261 | 1041 | 3 | 5.7 |
| HKC200N1800-50 | 3.0～5.0 | 200 | 1000 | 1775 | 775 | 4 | 6.0 |
| HKC200N1800-70 | 5.0～7.0 | 200 | 1000 | 1775 | 775 | 4 | 6.0 |
| HKC200N2500-50 | 3.0～5.0 | 200 | 1260 | 2460 | 1200 | 3 | 6.3 |
| HKC200N2500-70 | 5.0～7.0 | 200 | 1260 | 2460 | 1200 | 3 | 6.3 |
