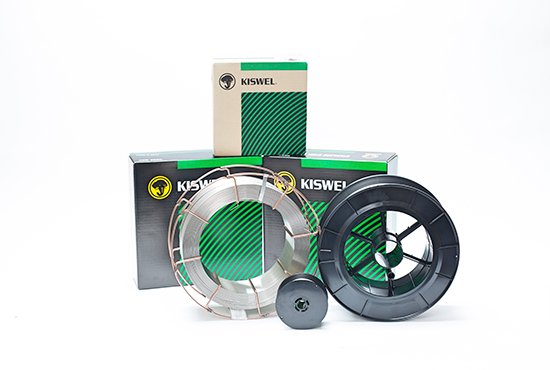

M-309LSi AWS A5. 9 : ER309LSi
M-309LSi AWS A5. 9 : ER309LSi

KISWEL · MIG / TIG

M-309LSi AWS A5. 9 : ER309LSi

Welding of similar alloys in wrought or cast forms, Joining of Type 304 to carbon steel and welding the clad side to Type 304 clad steels

Fitur

Welding of similar alloys in wrought or cast forms, Joining of Type 304 to carbon steel and welding the clad side to Type 304 clad steels. AWS: A5.9 : ER309LSi

Spesifikasi Teknis

ProductM-309LSi
ProcessMIG (GMAW) solid wire
ApplicationAustenite stainless steel (low carbon, dissimilar steels): 22%Cr-12%Ni STS and dissimilar joints such as 304L to mild or low alloy steels
AWS A5.9-2012ER309LSi
EN ISO 14343-B:2009SS 309LSi
JIS Z 3321:2013YS309LSi
Typical chemical composition of wire (%)C 0.01 · Si 0.91 · Mn 1.86 · Ni 13.62 · Cr 23.07
Typical yield strength (MPa)435
Typical tensile strength (MPa)609
Typical elongation (%)39
Typical impact value 0℃ (J)114
Typical impact value -196℃ (J)56
