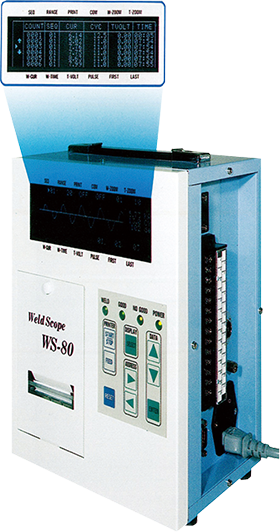

Welding Current Meter WS-80
Product Description
* Measures the welding current and the energization time. * Up to 15 different monitor conditions can be set. * An error will be notified with a lamp and a buzzer and the relay contact is output. * Graphic waveforms and numeric values can be printed out.
Technical Specifications
| Model | WS-80rev2 |
|---|---|
| Outer dimensions(mm) | W240×D300×H180 |
| Weight(kg) | 6.1kg (approximate) |
| Language | English |
| Power Source | AC100-120V、50/60Hz |
| Temperature(℃) | Normal: 0 to 40[°C] |
| Humidity | 90% or less non-condensing |
| Corresponding welding machine | Various welding machines for single-phase alternating current, single-phase rectifying, three-phase rectifying, capacitors (peak current values), and inverters |
| Supported power source frequencies | 50/60Hz(ex-work:50Hz To be changed accoding to region) |
| Current measurement range(kA) | 0.50～5.00(kA)、2.0～20.0(kA)、5.0～50.0(kA)10.0～100(kA) ※The above are the ranges for the standard-supplied toroidal coils. |
| Measurement time(cyc) | 0.5～99 |
| Accuracy of current measurement | ±2%F.S. |
| Flow angle measurement range(°) | 30-180 |
| Internally held data | Measured data of the past 4,000 dots |
| Communication Interface | RS-232C |
