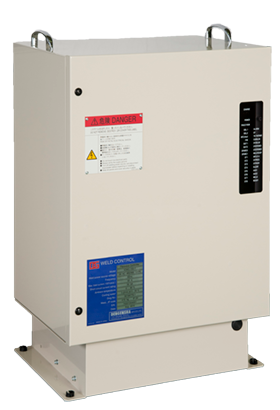

DC inverter for stand-alone spot & seam welding machine DIT SERIES
Product Description
- 255 welding conditions for automation
- Four-stage current passing and strong/weak pulse are possible
- 5-stage electrode pressurization command available (initial pressurization, current 1, current 2&3, current 4, held)
- Abundant startup input method (binary, BCD)
- I/O power Source can be connected via NPN/PNP
- Control device can be connected in parallel to accommodate larger capacities
Technical Specifications
| Model | Rated capacity (kVA) | Rated supply voltage (V) | Output current (A) | Applications |
|---|---|---|---|---|
| DIT-723-5 | 75 | 200-220 | 700 | Spot |
| DIT-1123-5 | 118 | 200-220 | 1,100 | Spot |
| DIT-543-5 | 108 | 400-440 | 500 | Spot |
| DIT-843-5 | 173 | 400-440 | 800 | Spot |
| DIT-1043-5 | 216 | 400-440 | 1,000 | Spot |
| DIT-1643-5 | 346 | 400-440 | 1,600 | Spot |
| DIT-825-5 | 214 | 200-220 | 800 | Seam |
| DIT-845-5 | 429 | 400-440 | 800 | Seam |
