DENGENSHA TOA Weld Controls Available

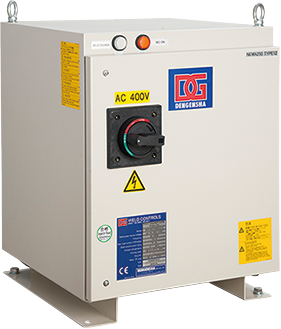

DC inverter for stand-alone spot & seam welding machine 1000 SERIES

Product Description

  • Easy set-up with robotics with EtherNet/IP spec. and reduced wiring
  • Five-stage current passing specifications
  • Control of welding conditions by EtherNet communication and traceability of welding result monitor
  • Waveform data such as welding current, voltage between tips, and resistance between tips can be obtained
  • Conditions can be managed on the Web
  • Dot duty cycle monitor protects transdiode damage
  • Chip dress pass/fail judgment function
  • Output 400A/300A spec. can be stacked (up to 3 stages)
  • I/O power Source can be connected via NPN/PNP
  • Supports FANUC pressure profile control function
  • CE compliant

Technical Specifications

ModelRated supply voltage (V)Output current (A)ApplicationsCooling system
SWIE-1000-WS40380-480400SpotWater cooling
SWIE-1000-KA30380-480300SpotAir cooling
SWIE-1000-WS80380-480800SpotWater cooling
SWIE-1000-WS100380-4801,000Spot/SeamWater cooling
SWIE-1000-WS200380-4802,000Spot/SeamWater cooling
