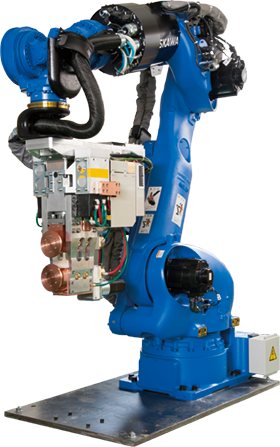

DC Inverter Type Seam Welder
Product Description
Small robotic seam welder with the DC inverter welding technology. This welder has enabled application of seam welding to the locations in which welding was difficult with conventional methods and also enabled automatic seam welding.
Technical Specifications
| Model | RCGR-188 |
|---|---|
| Primary power Source (welded) | Three-phase 400/440V 50/60Hz |
| Primary power Source (robotic) | Three-phase 200/220V 50/60Hz |
| Rated capacity (kVA) | 188 |
| Maximum pawer (kVA) | 188 |
| Duty cycle（%） | 50 |
| Maximum short circuit current (A) | 17,000 |
| Maximum pressure force (kN) | 6.0(Servo motor drive) |
| Dimensions (mm) (depth x Distance) | 50ｘ18 |
| Pressure stroke(mm) | Normal 30/Full 65 |
| Electrode diameter | Φ120～Φ90 |
| Electrode peripheral speed (m/min) | 0.5～10(Machine capacity when not welded) |
| Cooling water(L/min) | 28(seam head) 5(control device) |
| Welded control device Model | DIT-845-5 |
| Welding conditions | 255 |
| 6-axis articulated robot | MOTOMAN-SP210 (Yaskawa Electric) |
| Robot control panel | YRC1000 |
| Approximate seam head weight (kg) | 165 |
