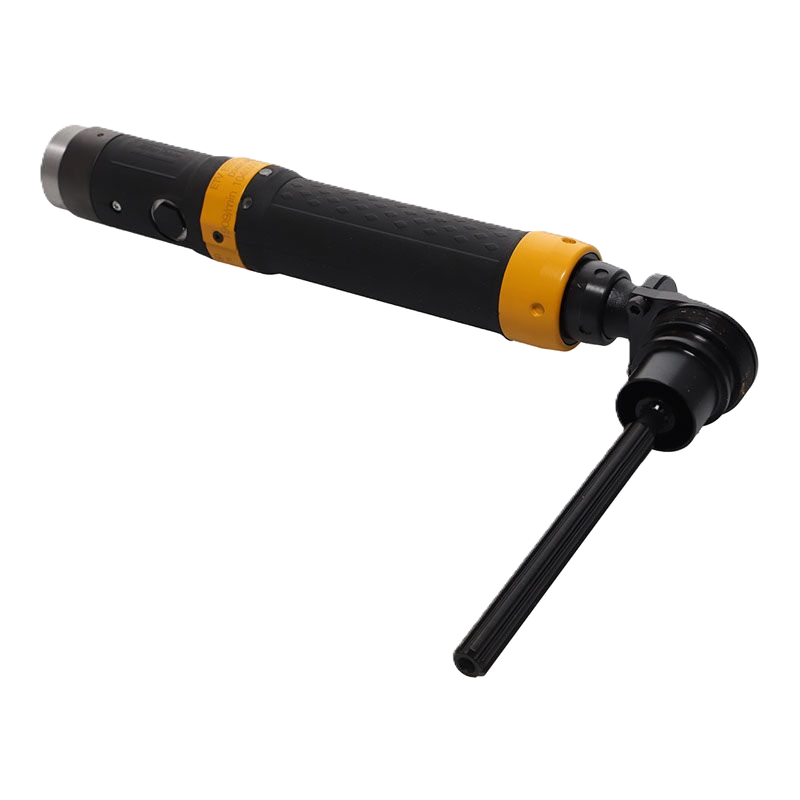

ETV ES21-04-SF
Product Description
Atlas CopcoTensor Angle Cable Screwdriver Tensor ES is designed for tough working environments. With its durable design and built-in torque transducer Tensor ES is the perfect choice for industrial applications where quality is critical. Tensor ES tools are an excellent alternative to traditional pneumatic tools due to their improved accuracy, low noise and vibration levels, and a variety of tightening control options. In addition to onboard LED lights for operator feedback, the Tensor ES has a modular design for ease of maintenance and serviceability.
Technical Specifications
Specification
| Category | Specification |
| Torque | |
| Max Torque Range | 3 ft-lb (4.07 N·m) |
| Min Torque Range | 1.2 ft-lb (1.63 N·m) |
| Torque Scatter (3σ) | ≤ 7.5% |
| Speed | |
| Max Speed Range | 1909 RPM |
| Certifications & Standards | |
| CQC Certified | No |
| EAC Certified | Yes |
| EU Legislation | 2006/42/EC (MD), 2011/65/EU (RoHS), 2014/30/EU (EMC), 2015/863/EU (RoHS amendment) |
| EU Standards | EN 61000-6-2:2019, EN 61000-6-4:2019, EN 62841-1:2015+AC:2015, EN 62841-2-2:2014+AC:2015, EN ISO 12100:2010 |
| KC Certified | No |
| UK Regulations | S.I. 2008/1597, S.I. 2012/3032, S.I. 2016/1091 |
| UK Standards | BS EN 62841-1:2015, BS EN 62841-2-2:2014, BS EN IEC 61000-6-2:2019, BS EN IEC 61000-6-4:2019, BS EN ISO 12100:2010 |
| WEEE Compliance | Category 5 (Small equipment <50cm) |
| Design & Functions | |
| Model Type | Angle Grinder |
| SCIP Number | 8334a46b-3acb-44eb-92f3-8b7b6382298f |
| Shut-off System | Transducer |
| Tool Family | ES Series |
| Power | |
| Motor Power | 1040 W |
| Motor Voltage Type | 3-Phase AC |
| Motor Voltage | 200 V |
| Noise & Vibrations | |
| Sound Pressure | <70 dB(A) |
| Sound Standard | ISO 15744 |
| Vibration Standard | ISO 28927-2 |
| Vibration Value | <2.5 m/s² |
| Dimensions & Weight | |
| CS Distance | 18.5 mm |
| Length | 292 mm |
| Weight | 2.4 lb (1.09 kg) |
