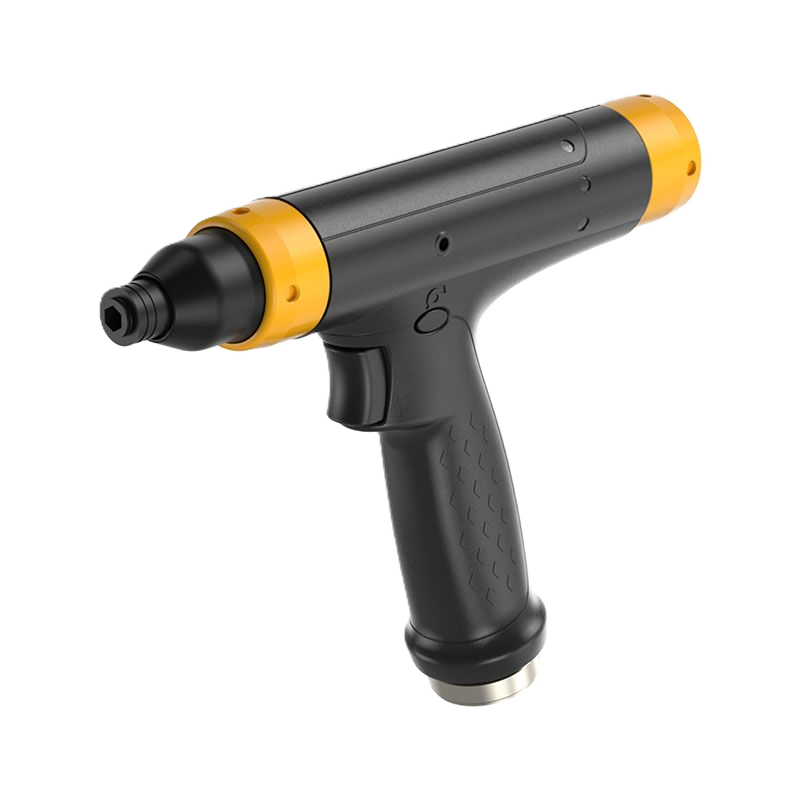

ETP ES21-04-I06-PS
Product Description
The Pistol Cable Screwdriver Tensor ES is designed for tough working environments. Its durable design and built-in torque transducer make it an easy choice for industrial applications where quality is critical. Tensor ES tools are an excellent alternative to traditional pneumatic tools due to their improved accuracy, low noise and vibration levels, and a variety of tightening control options. In addition to onboard LED lights for operator feedback, the Tensor ES has a modular design for ease of maintenance and serviceability.
Technical Specifications
Specification
| Category | Specification |
| Design & Functions | |
| Model Type | Pistol Grip |
| Output Feature | Bit Holder |
| Output Type | Hexagon (Female) |
| Shut-off System | Transducer |
| Tool Family | ES Series |
| Dimensions & Weight | |
| CS Distance | 19.5 mm |
| Length | 225 mm |
| Output Size | 1/4" (6.35 mm) |
| Weight | 1.8 lb (0.82 kg) |
| Power | |
| Motor Power | 1040 W |
| Motor Voltage Type | 3-Phase AC |
| Motor Voltage | 200 V |
| Torque | |
| Max Torque Range | 3.3 ft-lb (4.47 N·m) |
| Min Torque Range | 1.2 ft-lb (1.63 N·m) |
| Torque Scatter (3σ) | ≤ 7.5% |
| Certifications & Standards | |
| CCC Certified | No |
| CQC Certified | No |
| EAC Certified | Yes |
| EU Legislation | 2006/42/EC (MD), 2011/65/EU (RoHS), 2014/30/EU (EMC), 2015/863/EU (RoHS amendment) |
| EU Standards | EN 61000-6-2:2019, EN 61000-6-4:2019, EN 62841-1:2015+AC:2015, EN 62841-2-2:2014+AC:2015, EN ISO 12100:2010 |
| KC Certified | Yes |
| KC ID | R-REI-50A-ETPES21 |
| UK Regulations | S.I. 2008/1597, S.I. 2012/3032, S.I. 2016/1091 |
| UK Standards | BS EN 62841-1:2015, BS EN 62841-2-2:2014, BS EN IEC 61000-6-2:2019, BS EN IEC 61000-6-4:2019, BS EN ISO 12100:2010 |
| WEEE Compliance | Category 5 (Small equipment <50cm) |
| Noise & Vibrations | |
| Sound Pressure | <70 dB(A) |
| Sound Standard | ISO 15744 |
| Vibration Standard | ISO 28927-2 |
| Vibration Value | <2.5 m/s² |
| Speed | |
| Max Speed Range | 1909 RPM |
