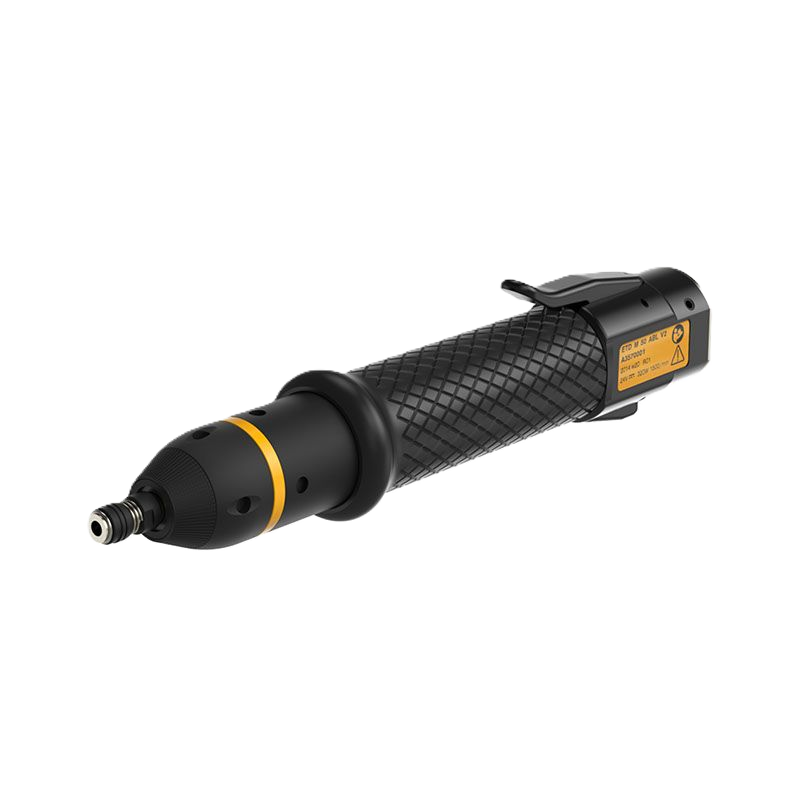

ETD M 50 ABL V2
Product Description
The MicroTorque current controlled handheld screwdriver is advanced tightening solution for any low torque application. Extremely ergonomic, very compact and full of functionalities, it is the right tool to boost productivity and quality, resulting in high efficiency and cost reduction. The MicroTorque system is flexible and provides clear operator feedback. All MicroTorque screwdrivers are ESD (electrostatic discharge) and clean room approved to guarantee quality no matter the requirement of the surroundings.
Technical Specifications
Specification
| Category | Specification |
| Safety | |
| Ingress Protection Rating | IP20 |
| Certifications & Standards | |
| CCC Certified | No |
| CQC China | No |
| EAC Certified | Yes |
| EU Legislation | 2006/42/EC (MD), 2011/65/EU (RoHS), 2014/30/EU (EMC), 2015/863/EU (RoHS amendment) |
| EU Standards | EN 55014-1:2017, EN55014-2:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-6-2:2005, EN 62841-1, EN 62841-2-2 |
| KC Certified | Yes |
| KC ID | MSIP-REI-50A-MICROTORQUE |
| UK Regulations | S.I. 2008/1597, S.I. 2012/3032, S.I. 2016/1091 |
| UK Standards | EN 55014-1:2017, EN55014-2:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-6-2:2005, EN 62841-1, EN 62841-2-2 |
| WEEE Compliance | Category 5 (Small equipment <50cm) |
| Noise & Vibrations | |
| Sound Pressure | <70 dB(A) |
| Sound Standard | ISO 15744 |
| Vibration Standard | ISO 28927-2 |
| Vibration Value | <2.5 m/s² |
| Temperature | |
| Operating Temperature Max | 104°F (40°C) |
| Operating Temperature Min | 41°F (5°C) |
| Storage Temperature Max | 140°F (60°C) |
| Storage Temperature Min | -13°F (-25°C) |
| Dimensions & Weight | |
| Length | 238 mm (9.37 in) |
| Overall Width | 43 mm (1.69 in) |
| Weight | 1.37 lb (0.62 kg) |
| Speed | |
| Free Speed | 2000 RPM |
| Max Speed Range | 2000 RPM |
| Torque | |
| Max Torque Range | 4.4 in-lb (0.5 N·m) |
| Min Torque Range | 1.33 in-lb (0.15 N·m) |
| Torque Scatter (3σ) | ≤ 7.5% |
| Design & Functions | |
| Bit Drive | HM 4mm |
| Model Type | Straight |
| SCIP Number | fccef4aa-a3a2-44e5-8fc1-59459132fa8c |
| Shut-off System | Current Control |
| Power | |
| Motor Power | 90 W |
| Motor Voltage Type | DC |
| Motor Voltage | 24 V |
