ATLAS COPCO
Click to zoom • Drag to pan

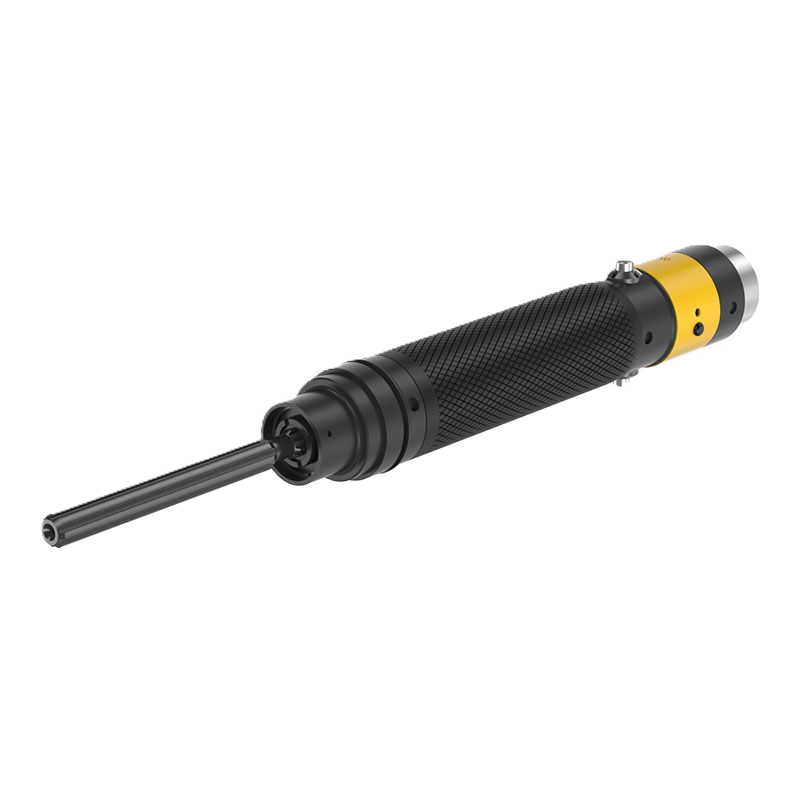

ETD SL21-10-SF
Product Description
Take assembly quality to the next level with the transducerized Straight Cable Screwdriver Tensor SL. With an excellent power to weight ratio, ergonomic grip and integrated speaker and LED lights for result’s feedback the Tensor SL optimizes operator comfort and efficiency. High productivity is ensured with the Tensor SL’s high cycle-rate speed and safety-critical accuracy, making it an excellent choice for even the most demanding low-torque applications.
Technical Specifications
Specification
| Category | Specification |
| Certifications & Standards | |
| CCC Certified | No |
| CQC Certified | No |
| EAC Certified | Yes |
| EU Legislation | 2006/42/EC (MD), 2011/65/EU (RoHS), 2014/30/EU (EMC), 2015/863/EU (RoHS amendment) |
| EU Standards | EN 61000-6-2:2019, EN 61000-6-4:2019, EN 62841-1:2015+AC:2015, EN 62841-2-2:2014+AC:2015, EN ISO 12100:2010 |
| KC Certified | No |
| UK Regulations | S.I. 2008/1597, S.I. 2012/3032, S.I. 2016/1091 |
| UK Standards | BS EN 62841-1:2015, BS EN 62841-2-2:2014, BS EN IEC 61000-6-2:2019, BS EN IEC 61000-6-4:2019, BS EN ISO 12100:2010 |
| WEEE Compliance | Category 5 (Small equipment <50cm) |
| Dimensions & Weight | |
| CS Distance | 20.5 mm |
| Length | 320 mm (12.6 in) |
| Weight | 1.6 lb (0.73 kg) |
| Design & Functions | |
| Model Type | Straight |
| SCIP Number | 0e839bca-71a3-4a55-89b6-1f31bd7caef9 |
| Shut-off System | Transducer |
| Speed | |
| Max Speed Range | 720 RPM |
| Power | |
| Motor Power | 140 W |
| Motor Voltage Type | 3-Phase AC |
| Motor Voltage | 35 V |
| Noise & Vibrations | |
| Sound Pressure | <70 dB(A) |
| Sound Standard | ISO 15744 |
| Vibration Standard | ISO 28927-2 |
| Vibration Value | <2.5 m/s² |
| Torque | |
| Max Torque Range | 7.3 ft-lb (9.9 N·m) |
| Min Torque Range | 1.5 ft-lb (2.0 N·m) |
| Torque Scatter (3σ) | ≤ 5% |
