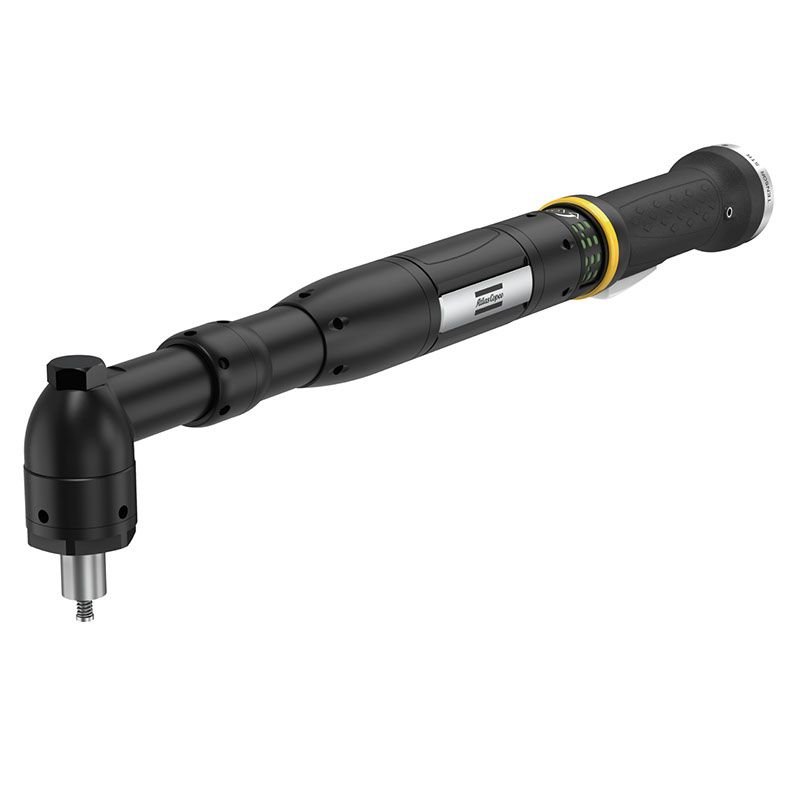

ETV STR61-30-HAD
Product Description
Take productivity to new levels with the revolutionary Angle Cable Nutrunner Tensor STR. The Tensor STR offers a wide range of options to improve the operator experience and increase the efficiency of your assembly line, which includes faster tightening speeds and exceptional ergonomics. The Tensor STR connects directly to the Power Focus 6000 controller for a complete error-proofing solution in safety-critical applications.
Technical Specifications
Specification
| Category | Specification |
| Certifications, Standards & Directives | CCC certified: No CQC certified: No EAC certified: Yes EU Legislation: 2006/42/EC (MD); 2011/65/EU (RoHS); 2014/30/EU (EMC); 2015/863/EU (RoHS amendment) EU Standard: EN 61000-6-2:2019; EN 61000-6-4:2019; EN 62841-1:2015+AC:2015; EN 62841-2-2:2014+AC:2015; EN ISO 12100:2010 KC certified: No KC ID: N/A UK Regulations: S.I. 2008/1597; S.I. 2012/3032; S.I. 2016/1091 UK Standard: BS EN 62841-1:2015; BS EN 62841-2-2:2014; BS EN IEC 61000-6-2:2019; BS EN IEC 61000-6-4:2019; BS EN ISO 12100:2010 WEEE: 5 – Small equipment <50 cm |
| Noise & Vibrations | Sound pressure: <70 dB(A) Sound standard: ISO15744 Vibration standard: ISO28927-2 Vibration value: <2.5 m/s² |
| Dimensions & Weight | CS distance: 18.3 mm Height: 80 mm Length: 464 mm Output size: 50 HAD Weight: 4.4 lb |
| Design & Functions | Model type: Angle Output type: Hold and drive Shut-off system: Transducer Tool family: STR |
| Speed | Maximum speed range: 1220 r/min |
| Power | Motor power: 1500 W Motor voltage type: 3 a.c. Motor voltage: 200 V |
| Torque | Maximum torque range: 25 ft-lb Minimum torque range: 5 ft-lb Torque scatter (3s): ≤5% |
