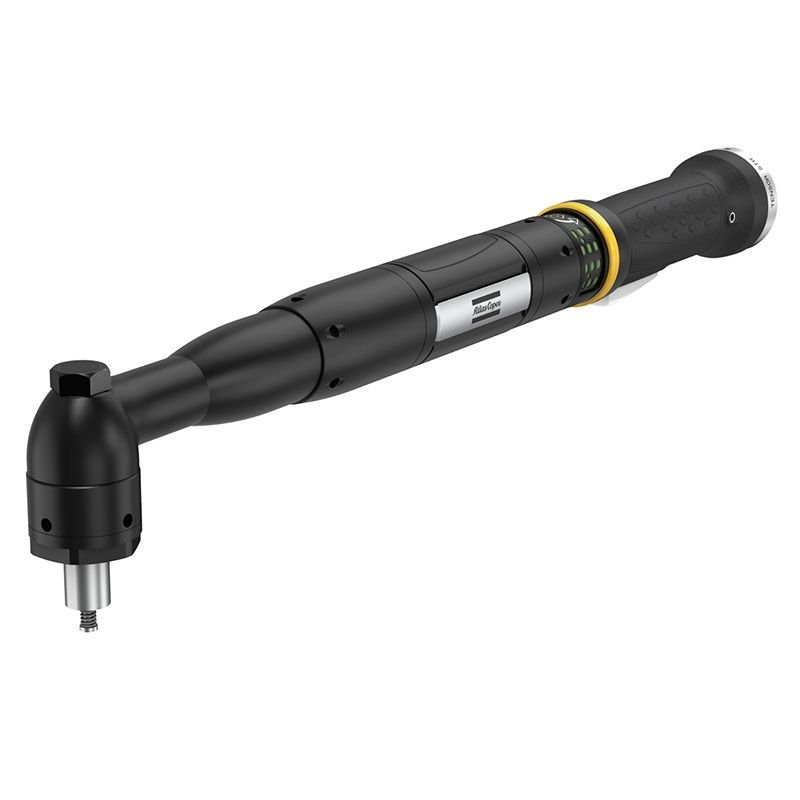

ETV STR61-50-HAD
Product Description
Take productivity to new levels with the revolutionary Angle Cable Nutrunner Tensor STR. The Tensor STR offers a wide range of options to improve the operator experience and increase the efficiency of your assembly line, which includes faster tightening speeds and exceptional ergonomics. The Tensor STR connects directly to the Power Focus 6000 controller for a complete error-proofing solution in safety-critical applications.
Technical Specifications
Specification
| Specification | Details |
| Certifications, Standards & Directives | |
| CCC certified | No |
| CQC certified | No |
| EAC certified | Yes |
| EU Legislation | 2006/42/EC (MD); 2011/65/EU (RoHS); 2014/30/EU (EMC); 2015/863/EU (RoHS amendment) |
| EU Standard | EN 61000-6-2:2019; EN 61000-6-4:2019; EN 62841-1:2015+AC:2015; EN 62841-2-2:2014+AC:2015; EN ISO 12100:2010 |
| KC certified | Yes |
| KC ID | R-REI-50A-ETVSTR61 |
| UK Regulations | S.I. 2008/1597; S.I. 2012/3032; S.I. 2016/1091 |
| UK Standard | BS EN 62841-1:2015; BS EN 62841-2-2:2014; BS EN IEC 61000-6-2:2019; BS EN IEC 61000-6-4:2019; BS EN ISO 12100:2010 |
| WEEE Category | 5 - Small equipment (<50cm) |
| Noise & Vibrations | |
| Sound pressure | <70 dB(A) |
| Sound standard | ISO15744 |
| Vibration standard | ISO28927-2 |
| Vibration value | <2.5 m/s² |
| Dimensions & Weight | |
| CS distance | 18.3 mm |
| Height | 80 mm |
| Length | 438 mm |
| Output size | 50 HAD |
| Weight | 4.6 lb |
| Design & Functions | |
| Model type | Angle |
| Output type | Hold and drive |
| Shut-off system | Transducer |
| Tool family | STR |
| Speed | |
| Max speed | 735 r/min |
| Power | |
| Motor power | 1500 W |
| Motor voltage type | 3-phase AC |
| Motor voltage | 200 V |
| Torque | |
| Max torque | 40.5 ft-lb |
| Min torque | 7.3 ft-lb |
| Torque scatter (3s) | ≤ 5 % |
