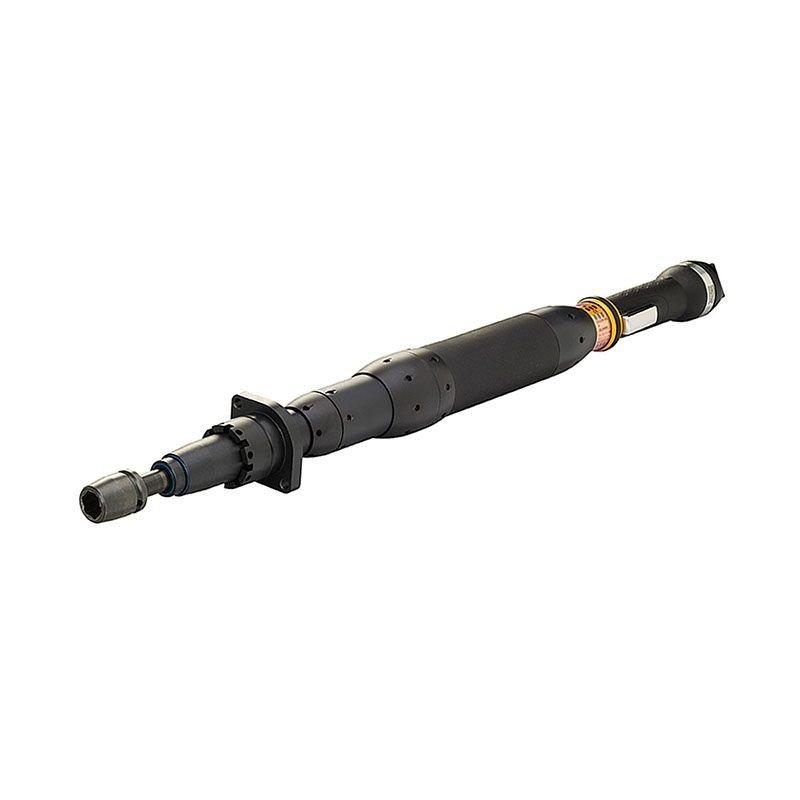

ETD ST101-100-13-T25
Product Description
Performance and operator comfort are perfectly balanced in the versatile Straight Cable Nutrunner Tensor ST. The Tensor ST’s combination of speed and superior accuracy ensure high levels of productivity in the most demanding safety-critical applications. Tensor ST tools are fully compatible with the Power Focus 6000 and can be paired with a wide range of accessories for complete control over your tightening.
Technical Specifications
Specification
| Category | Specification |
| Physical Dimensions | |
| CS Distance | 30.5 mm (1.20") |
| Overall Length | 656 mm (25.8") |
| Drive Size | 1/2" Square |
| Unit Weight | 7.3 lb (3.3 kg) |
| Design Features | |
| Configuration | Straight Design |
| Drive Type | Male Square |
| Torque Control | Transducer System |
| Product Series | ST Line |
| Performance Data | |
| Torque Range | 18-73 ft-lb (24-99 Nm) |
| Torque Consistency | ±5% (3σ) |
| Maximum Speed | 1043 rpm |
| Power Requirements | |
| Motor Output | 1500W (2 HP) |
| Electrical Input | 200V 3-Phase AC |
| Certifications | |
| Quality Certifications | CQC: No • CQC: Yes • EAC: Yes |
| Safety Standards | EN 62841-1:2015, EN 62841-2-2:2014 |
| EMC Compliance | EN 61000-6-2/4:2019 |
| Environmental Data | |
| Sound Level | <70 dB(A) |
| Vibration | <2.5 m/s² |
| WEEE Category | 4 (>50cm) |
