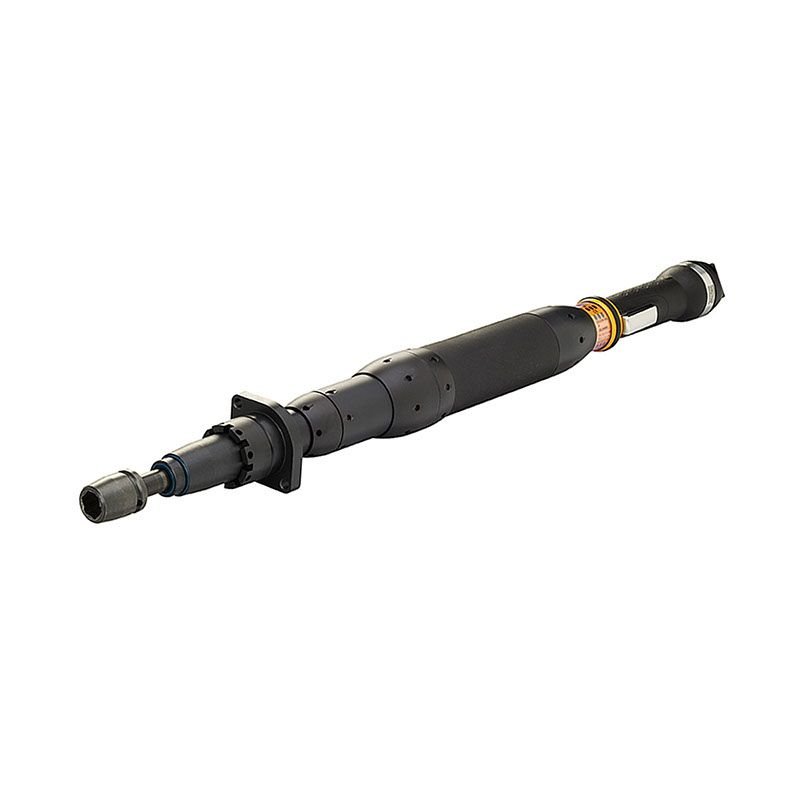

ETD ST101-120-13-T25
Product Description
Performance and operator comfort are perfectly balanced in the versatile Straight Cable Nutrunner Tensor ST. The Tensor ST’s combination of speed and superior accuracy ensure high levels of productivity in the most demanding safety-critical applications. Tensor ST tools are fully compatible with the Power Focus 6000 and can be paired with a wide range of accessories for complete control over your tightening.
Technical Specifications
Specification
| Category | Details |
| Dimensions & Weight | |
| CS Distance | 30.5 mm (1.20 in) |
| Length | 656 mm (25.8 in) |
| Output Size | 1/2" Square Drive |
| Weight | 7.3 lb (3.31 kg) |
| Design Features | |
| Model Type | Straight Nutrunner |
| Drive Configuration | Male Square Output |
| Torque Control | Electronic Transducer |
| Product Line | ST Professional Series |
| Performance | |
| Torque Range | 22-88 ft-lb (30-119 Nm) |
| Torque Accuracy | ±5% (3σ standard deviation) |
| Operating Speed | 873 rpm |
| Power System | |
| Motor Power | 1500W (2 HP) |
| Electrical Requirements | 200V 3-Phase AC |
| Certifications | |
| International Approvals | CQC: No • EAC: Yes • KC: Yes (ID: R-REI-50A-ETVST101) |
| Compliance Standards | |
| EU Directives | Machinery (2006/42/EC) • RoHS (2011/65/EU + 2015/863) • EMC (2014/30/EU) |
| Safety Standards | EN 62841-1:2015 • EN 62841-2-2:2014 • EN ISO 12100:2010 |
| EMC Compliance | EN 61000-6-2:2019 • EN 61000-6-4:2019 |
| Environmental Data | |
| Noise Level | <70 dB(A) (ISO 15744) |
| Vibration | <2.5 m/s² (ISO 28927-2) |
| WEEE Classification | Category 4 (Large equipment >50cm) |
