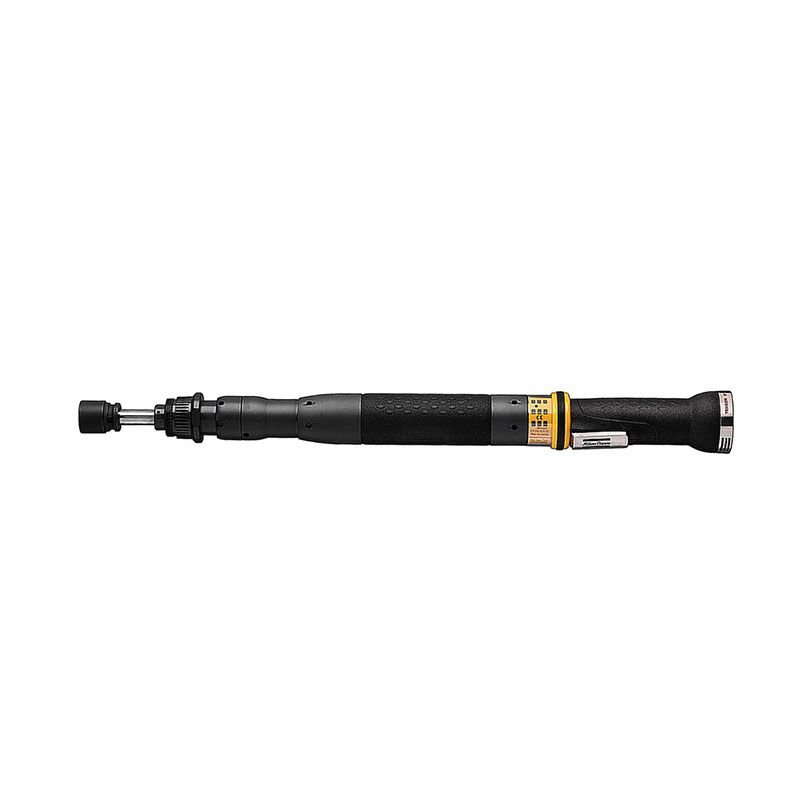

ETD ST81-70-13
Product Description
Performance and operator comfort are perfectly balanced in the versatile Straight Cable Nutrunner Tensor ST. The Tensor ST’s combination of speed and superior accuracy ensure high levels of productivity in the most demanding safety-critical applications. Tensor ST tools are fully compatible with the Power Focus 6000 and can be paired with a wide range of accessories for complete control over your tightening.
Technical Specifications
Specification
| Category | Details |
| Dimensions & Weight | |
| CS Distance | 26.5 mm (1.04 in) |
| Length | 510 mm (20.1 in) |
| Drive Size | 1/2" Square |
| Weight | 5.5 lb (2.5 kg) |
| Mechanical Design | |
| Model Configuration | Straight Nutrunner |
| Output Type | Male Square Drive |
| Torque Control | Electronic Transducer |
| Spline Configuration | 2/2 |
| Product Line | ST Series |
| Performance | |
| Torque Range | 12-51 ft-lb (16-69 Nm) |
| Torque Consistency | ±5% (3σ) |
| Maximum Speed | 880 rpm |
| Power System | |
| Motor Output | 1500W (2 HP) |
| Electrical Input | 200V 3-Phase AC |
| Certifications | |
| International Approvals | • CQC: Yes • EAC: Yes • KC: Yes (ID: R-REI-50A-ETVST81) |
| Compliance Standards | |
| EU Directives | • Machinery: 2006/42/EC • RoHS: 2011/65/EU + 2015/863 • EMC: 2014/30/EU |
| Safety Standards | • EN 62841-1:2015 • EN 62841-2-2:2014 • EN ISO 12100:2010 |
| Environmental | |
| Noise Emission | <70 dB(A) (ISO 15744) |
| Vibration Levels | <2.5 m/s² (ISO 28927-2) |
| WEEE Classification | Category 4 (>50cm equipment) |
