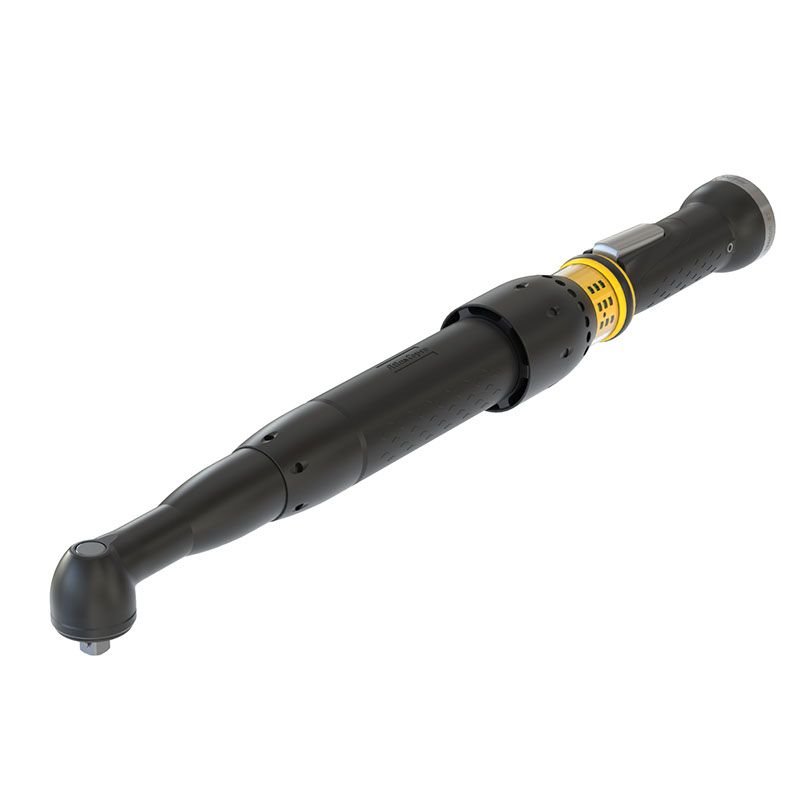

ETV ST81-50-10-F
Product Description
Performance and operator comfort are perfectly balanced in the versatile Angle Cable Nutrunner Tensor ST. The Tensor ST’s combination of speed and superior accuracy ensure high levels of productivity in the most demanding safety-critical applications. Tensor ST tools are fully compatible with the Power Focus 6000 and can be paired with a wide range of accessories for complete control over your tightening.
Technical Specifications
Specification
| Category | Specification |
| Speed | 1090 rpm |
| Dimensions & Weight | |
| • CS Distance | 18 mm (0.71") |
| • Height | 48 mm (1.89") |
| • Length | 510 mm (20.08") |
| • Output Size | 3/8" Square Drive |
| • Weight | 3.9 lb (1.77 kg) |
| Power System | |
| • Motor Power | 1500W (2 HP) |
| • Voltage | 200V 3-phase AC |
| Torque Performance | 12-40 ft-lb (16-54 Nm) |
| • Accuracy | ±5% (3σ) |
| Certifications | CQC:✔ EAC:✔ KC:✔ (R-REI-50A-ETVST81) |
| Noise/Vibration | <70 dB(A) / <2.5 m/s² |
| Compliance | EU MD/RoHS/EMC compliant |
