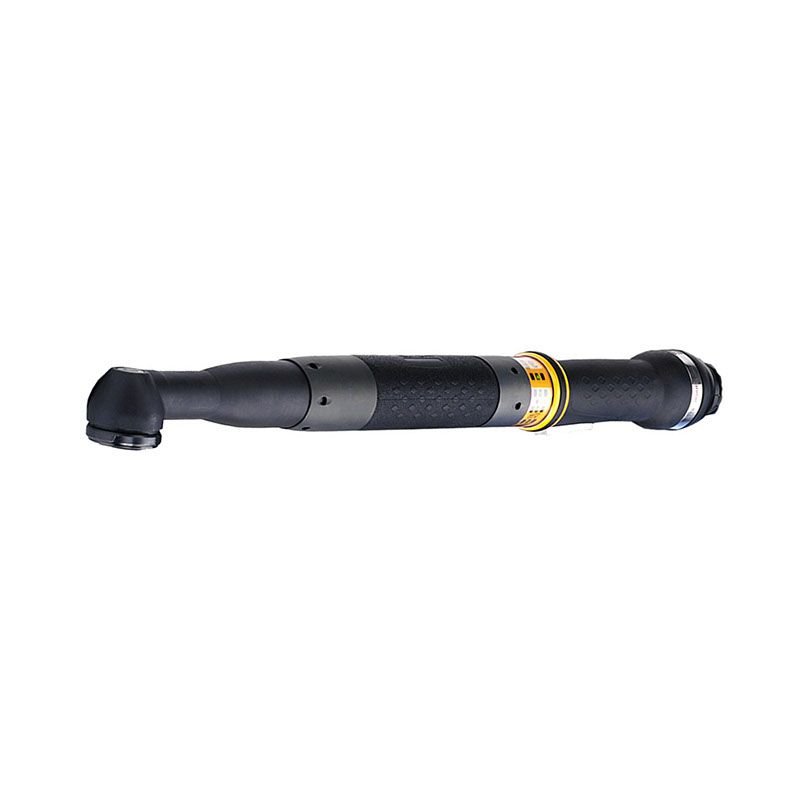

ETV-ST81-70-FS
Product Description
Performance and operator comfort are perfectly balanced in the versatile Angle Cable Nutrunner Tensor ST. The Tensor ST’s combination of speed and superior accuracy ensure high levels of productivity in the most demanding safety-critical applications. Tensor ST tools are fully compatible with the Power Focus 6000 and can be paired with a wide range of accessories for complete control over your tightening.
Technical Specifications
Specification
| Specification | Details |
| Speed | Max speed: 790 r/min |
| Certifications, Standards & Directives | CCC certified: No CQC certified: Yes EAC certified: Yes EU Legislation: 2006/42/EC (MD), 2011/65/EU (RoHS), 2014/30/EU (EMC), 2015/863/EU (RoHS amendment) EU Standard: EN 61000-6-2:2019, EN 61000-6-4:2019, EN 62841-1:2015+AC:2015, EN 62841-2-2:2014+AC:2015, EN ISO 12100:2010 KC certified: Yes KC ID: R-REI-50A-ETVST81 UK Regulations: S.I. 2008/1597, S.I. 2012/3032, S.I. 2016/1091 UK Standard: BS EN 62841-1:2015, BS EN 62841-2-2:2014, BS EN IEC 61000-6-2:2019, BS EN IEC 61000-6-4:2019, BS EN ISO 12100:2010 WEEE: 4 - Large equipment >50 cm |
| Dimensions & Weight | CS distance: 20.3 mm Height: 49.5 mm Length: 486 mm Output size: 70 FS Weight: 5 lb |
| Power | Motor power: 1500 W Motor voltage type: 3 a.c. Motor voltage: 200 V |
| Design & Functions | Model type: Angle Output type: Flush socket Shut-off system: Transducer Tool family: ST |
| Noise & Vibrations | Sound pressure: <70 dB(A) Sound standard: ISO15744 Vibration standard: ISO28927-2 Vibration value: <2.5 m/s² |
| Torque | Max torque: 58 ft-lb Min torque: 15 ft-lb Torque scatter (3s): ≤ 5% |
