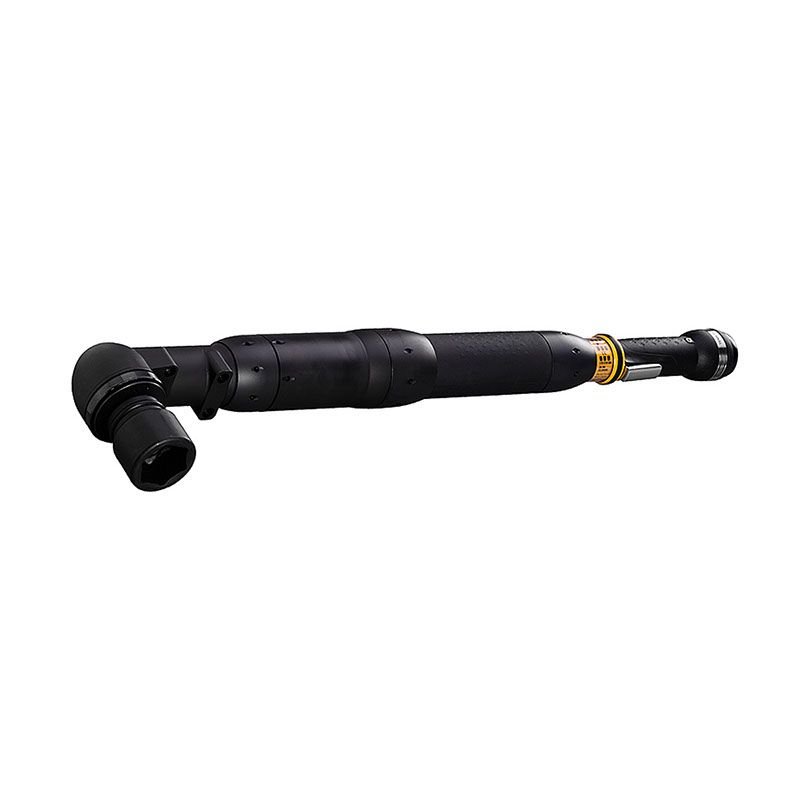

ETV ST101-370-HAD
Product Description
Performance and operator comfort are perfectly balanced in the versatile Angle Cable Nutrunner Tensor ST. The Tensor ST’s combination of speed and superior accuracy ensure high levels of productivity in the most demanding safety-critical applications. Tensor ST tools are fully compatible with the Power Focus 6000 and can be paired with a wide range of accessories for complete control over your tightening.
Technical Specifications
Specification
| Specification | Details |
| Speed | Max speed range: 280 r/min |
| Certifications, Standards & Directives | CCC certified: No CQC certified: Yes EAC certified: Yes EU Legislation: 2006/42/EC (MD); 2011/65/EU (RoHS); 2014/30/EU (EMC); 2015/863/EU (RoHS amendment) EU Standards: EN 61000-6-2:2019; EN 61000-6-4:2019; EN 62841-1:2015+AC:2015; EN 62841-2-2:2014+AC:2015; EN ISO 12100:2010 KC certified: Yes KC ID: R-REI-50A-ETVST101 UK Regulations: S.I. 2008/1597; S.I. 2012/3032; S.I. 2016/1091 UK Standards: BS EN 62841-1:2015; BS EN 62841-2-2:2014; BS EN IEC 61000-6-2:2019; BS EN IEC 61000-6-4:2019; BS EN ISO 12100:2010 WEEE: 4 - Large equipment >50cm |
| Dimensions & Weight | CS distance: 33 mm Height: 103.5 mm Length: 672 mm Output size: 370 HAD Weight: 18.3 lb |
| Power | Motor power: 1500 W Motor voltage type: 3 a.c. Motor voltage: 200 V |
| Design & Functions | Model type: Angle Output type: Hold and drive Shut-off system: Transducer Tool family: ST |
| Noise & Vibrations | Sound pressure: <70 dB(A) Sound standard: ISO15744 Vibration standard: ISO28927-2 Vibration value: <2.5 m/s² |
| Torque | Max torque range: 273 ft-lb Min torque range: 66 ft-lb Torque scatter (3s): ≤ 5% |
