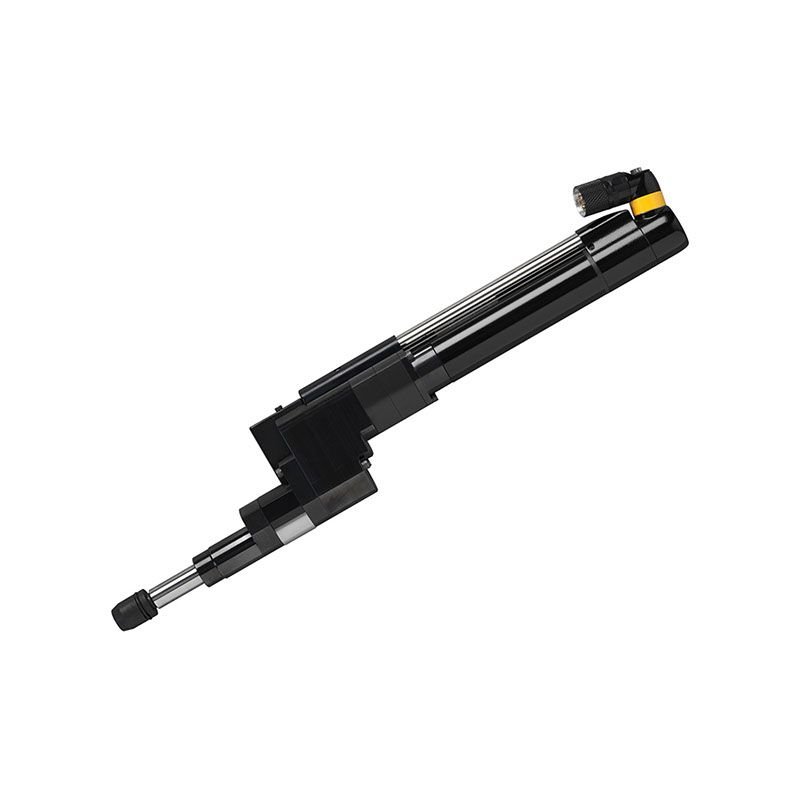

QST80-450COT-T50-L146-H19
Product Description
The Fixtured Nutrunner QST is a true state-of-the-art product offering high reliability, accuracy and capability. Available in several different models, the tool is designed for being durable, reliable and productive. The tightening controller automatically increases the bus voltage for the larger size nutrunner QST80 and 90, without the need for a different controller or servo, giving unique speed capabilities for high-torque applications, easy to integrate both fixtures and robots.
Technical Specifications
Specification
| Specification | Value |
| Torque range max | 332 ft-lb |
| Torque range min | 66 ft-lb |
| EAC certified | Yes |
| EU Legislation | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7) |
| EU Standard | EN 61800-3(2004) +A1(2012), EN 61010-1 (2010) |
| KC certified | Yes |
| KC ID | R-REI-50A-QST50 |
| UK Regulations | S.I. 2008/1597 (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7) |
| UK Standard | EN 61800-3(2004) +A1(2012), EN 61010-1 (2010) |
| WEEE | 4 - Large equipment >50cm |
| Gear ratio | 22.67 |
| Min C-C | 55 |
| SCIP | 179c54af-ee6b-4817-a831-9e7ca6a94970 |
| Sound pressure | <75 dB(A) |
| Sound standard | ISO15744 |
| Speed | 260 r/min |
| A | 146 mm |
| E | 685 mm |
| Socket holder size | 3/4 in |
| Travel | 50 mm |
| Weight | 46 lb |
