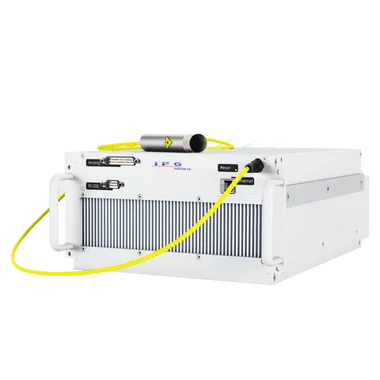

DLM-QCW Series
Product Description
IPG Photonics offers the DLM-QCW Series are a
high power quasi-continuous wave (QCW) diode laser
with a central wavelength of 895 nm and output peak
power up to 6 kW. These OEM modules are designed
for easy integration into laser medical systems for
various applications such as hair removal, pigment and
vascular lesion treatment. The DLM-QCW Series diode
lasers deliver energy through a flexible 600 μm core
diameter fiber for seamless integration into a handheld applicator. Rack-mounted units with end-user
friendly control interface and integrated AC power
supply are also available for R&D applications.
Technical Specifications
Specification
| Parameter | 150/1500 W | 300/3000 W |
| Wavelength (nm) | 1070 ±5 | |
| Mode of Operation | Pulsed/CW | |
| Modulation Frequency (kHz) | 0-50 | |
| Max. Average Power CW mode (W) | 250 | 300 |
| Max. Average Power QCW mode (W) | 150 | 300 |
| Maximum Peak Power (W) | 1500 | 3000 |
| Maximum Pulse Energy (J) | 15 | 30 |
| Pulse Duration (ms) | 0.05-50 | |
| Power Tunability (%) | 10-100 | |
| Power Stability (%) | ±0.5 | |
| Beam Quality (M²) | <1.1 (1.05 typ.) | <1.3 (1.15 typ.) |
| Parameter | 150/1500 W | 300/3000 W |
| Console Dimensions (W×D×H, mm) | Module: 256×435×148 Rack Unit: 448×504×177 | Module: 416×566×148 Rack Unit: 448×665×266 |
| Weight (kg) | Module: <25 Rack Unit: <30 | Module: <35 Rack Unit: <50 |
| Cooling | Air | |
| Supply Voltage | Module: 48 VDC Rack Unit: 100-240 VAC, 50-60 Hz, single-phase | Module: 48 VDC Rack Unit: 200-240 VAC, 50-60 Hz, single-phase |
| Wall-plug Efficiency (%) | >30 | |
