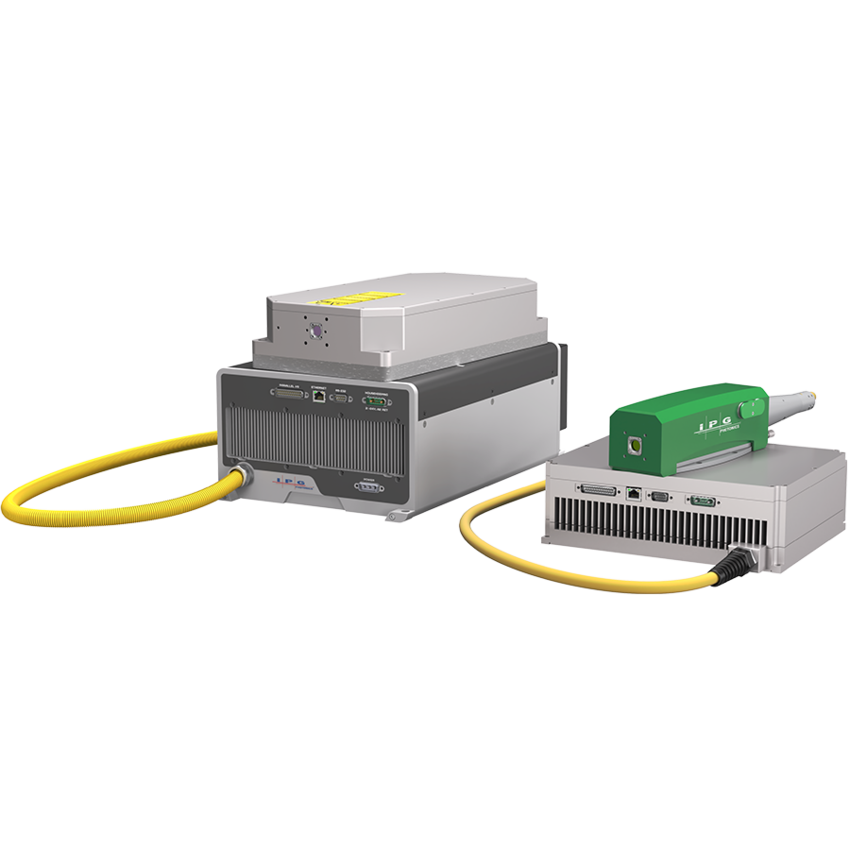

50-75 W Green Pulsed Fiber Lasers
Product Description
IPG Photonics’ NEW GLPN-M Series of green
nanosecond fiber lasers provide high peak power
with scalable average output power up to 75 W at
full operational repetition rate range of up to 3500
kHz. The all fiber format allows for the adjustment
of pulse energy and/or pulse repetition rate
without affecting any of the output beam
parameters. IPG’s novel fiber laser are much more
efficient and compact than conventional lasers
on today's market and is ideal for applications in
the solar/photovoltaic arena, resistor trimming
and marking of transparent materials. The short
wavelength, short pulse duration and high peak
power result in a very small heat affected zone.
Technical Specifications
Specification
| Parameter | GLPN-50-M | GLPN-75-M |
| Wavelength, nm | 517 | |
| Average Power, W | 50 | 70 |
| Pulse Energy, µJ | 500 | 500* |
| Pulse Duration, ns | 1.5; 4; 10 | 20; 50; 100* |
| Peak Power, kW | >60 | |
| Repetition Rate, kHz | 10–1000 | 10–700* |
| Beam Quality, M² | <1.6 | |
| Parameter | GLPN-50-M | GLPN-75-M |
| Module Dimensions (W×D×H), mm | 270 × 260 × 90 | 270 × 450 × 157 |
| Optical Head Dimensions (W×D×H), mm | 65 × 365 × 70 | 197 × 375 × 71 |
| Control Unit Cooling | Air | |
| Optical Head Cooling | Water | |
| Supply Voltage, VDC | 24 | 39 |
| Power Consumption, W | 240 | 650 |
