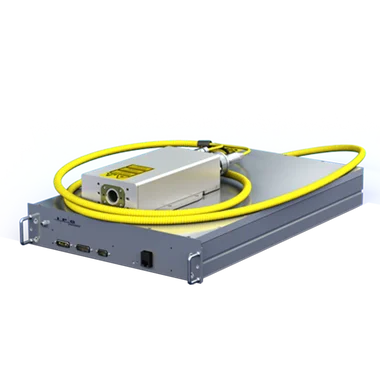

Green Quasi-CW Fiber Lasers
Product Description
GLPN-532-QCW and VLR-532 lasers provide
ground-breaking maximum average power up to
1000 W in a perfectly single-mode output beam. These
lasers take advantage of high repetition rate operation
mode to allow for a high-efficiency super compact
optical head. The lasers are offered as both highly
cost-effective compact OEM modules and
user-friendly 19” rack-mounted consoles. The optical
head is connected to a water-cooled, highly-efficient
and reliable fiber amplifier, pioneered by IPG. The
result is a rugged, industrial-grade, high-power
green fiber laser with unmatched performance and
remarkable wallplug efficiency.
Technical Specifications
Specification
| Parameter | GLPN-100 | GLPN-200 | GLPN-500 | GLPN-1000 |
| Wavelength, nm | 532 | |||
| Mode of Operation | Pulsed/QCW | |||
| Repetition Rate, MHz | ~25 | ~50 | ~125 | ~250 |
| Average Power, W | 100 | 200 | 500 | 1000 |
| Power Tunability, % | 1–100 | |||
| Pulse Duration, ns | ~1.2 | |||
| Power Stability*, % | ±2 | |||
| Polarization | Linear, >100:1 | |||
| Beam Quality, M² | <1.2 | |||
| Parameter | GLPN-100 | GLPN-200 | GLPN-500 | GLPN-1000 |
| Optical Head (W×D×H), mm | 114 × 238 × 60 | |||
| Module Dimensions (W×D×H), mm | Air-cooled* 294 × 491 × 149 | Water-cooled 332 × 527 × 71 | ||
| Console Dimensions (W×D×H), mm | Air-cooled 448 × 533 × 177 | Water-cooled 448 × 678 × 176 | ||
| Module Supply Voltage, VDC | 48 VDC | 56 VDC | ||
| Console Supply Voltage, VAC | 100–120 VAC, 50–60 Hz | 200–240 VAC, 50–60 Hz | ||
| Power Consumption, W | 580 | 950 | 2.100 | 3.900 |
