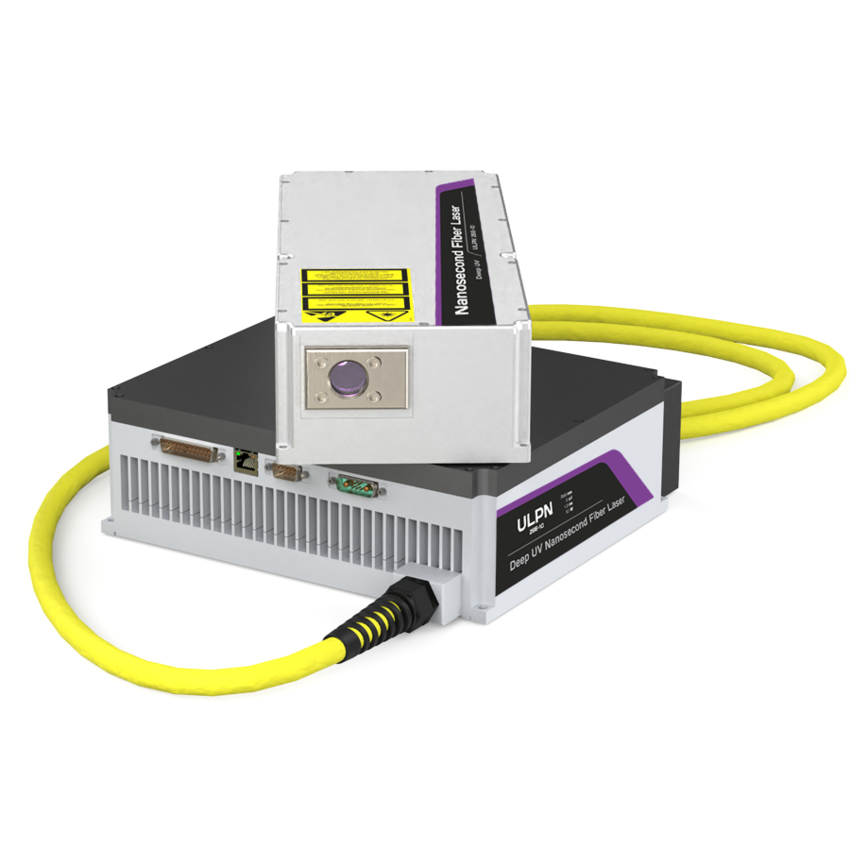

ULPN-266-M Series
Product Description
ULPN-266 laser is designed for micro-cutting, drilling, texturing, marking and selective material removal
on challenging materials such as glass, diamond and Teflon. Exceptional IPG non-linear crystal robustness
enables industry-leading laser realiability and stability of process parameters. The pulse energy is nearly
independent of pulse repetition rate, resulting in the highest productivity at the maximum average power.
Technical Specifications
Specification
| Opticals | Specification | |
| Wavelength, nm | 266 | |
| Mode of Operation | Pulsed | |
| Output Power, W | Up to 10 | |
| Power Tunability, % | 10-100 | |
| Pulse Energy, µJ | Up to 2 | |
| Pulse Duration, ns | 1.3 | |
| Repetition Rate, kHz | 100-2700 | |
| Beam Mode Quality, M² | <1.2 | |
| General | Specification | |
| OEM Laser Module Dimensions (W × D × H), mm | 270 × 256 × 89 | |
| Optical Head Dimensions (W × D × H), mm | 142 ×345 × 80 | |
| Optical Head Weight, kg | 5 | |
| Cooling | Optical Head – Passive Conductive Laser Module – Forced Air | |
| Supply Voltage, VDC | 24 | |
| Power Consumption, W | <200 | |
