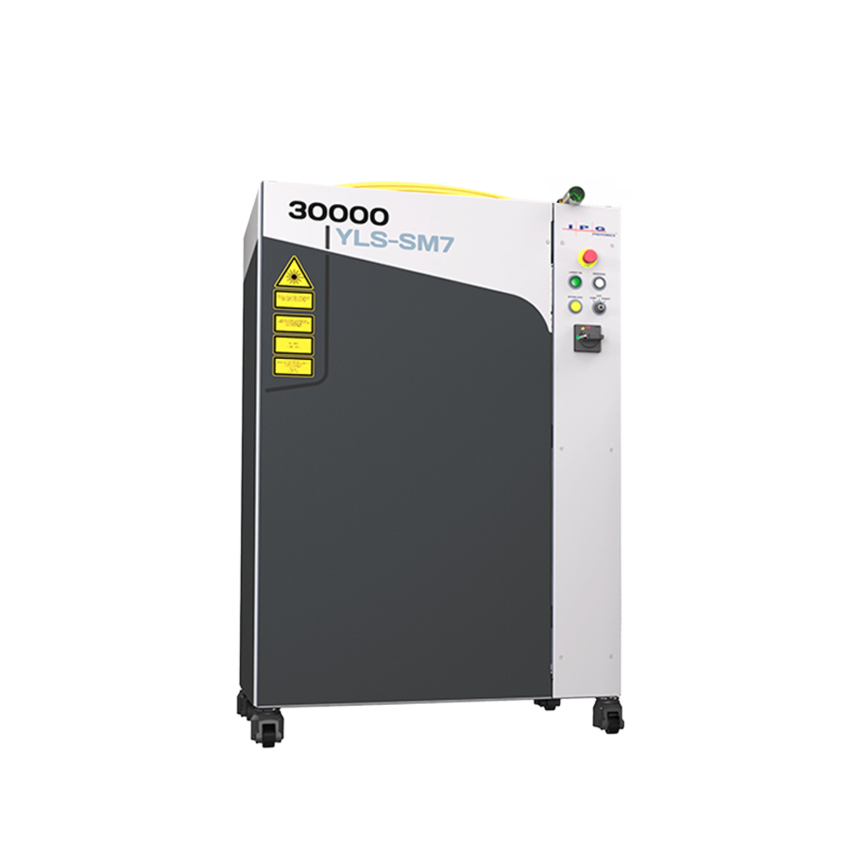

YLS-SM7
Product Description
IPG YLS-SMx Series Ytterbium fiber laser provide
30 kW of continuous power in low order beams with
low divergence. YLS-SMx lasers feature dynamic
power modulation range from 10% to full power
up to 5 kHz with no change in beam divergence or
beam profile. The YLS-SMx lasers are designed for
advanced applications requiring high power and
brightness such as directed energy, power beaming
and remote materials processing.
Technical Specifications
Specification
| Parameter | YLS-15000-SM3 | YLS-20000-SM4 | YLS-20000-SM7 |
| Optical Characteristics | |||
| Wavelength, nm | 1075 ±5 | ||
| Mode of Operation | CW/modulated | ||
| Modulation Frequency, kHz | 0 - 5 | ||
| Maximum Average Power, kW | 15 | 20 | 30 |
| Power Tunability, % | 10-100 | ||
| Power Stability*, % | ±2 | ||
| Beam Quality, M² | M²<2.5 | BPP<1.2, 1.0 typ. | BPP<2.0, 1.6 typ. |
| Beam Divergence, mrad | <150 | <90 | <95 |
| Output Fiber Length, m | 2 - 4 | ||
| General Characteristics | |||
| Cabinet Dimensions (W × D × H), mm | 1008 × 808 × 1055 | 1009 × 808 × 1380 | |
| Weight, kg | 650 | 1000 | |
| Supply Voltage, 3-phase, VAC | 400-480 | ||
| Power Consumption, kW | <68, typ. 59 | <65, typ. 55 | <95, typ. 85 |
