ELPN-1617/1645
Product Description

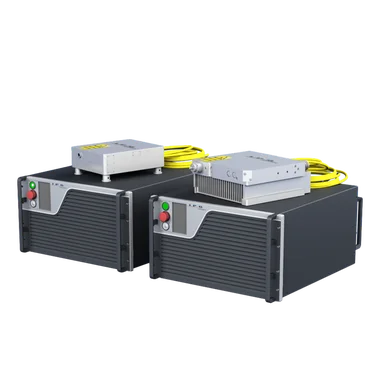

ELPN Erbium:YAG nanosecond pulsed laser provides
25-200 ns pulses at 1.645 μm with pulse energies up
to 35 mJ and output powers up to 25 W. Low and high
repetition rate modifications operate over 0.01-2 kHz
and 2-100 kHz frequency ranges, respectively. The
acousto-optically Q-switched Er:YAG head is pumped
by IPG efficient and reliable erbium fiber laser. The
Er:YAG-1645 pulsed laser addresses lidar remote
sensing, range-finding, track illumination, materials
processing, marking, resistor trimming, as well as
scientific and medical applications. Higher average
powers, pulse energies and other options are available
upon request.
Technical Specifications
Specification
| Parameter | ELPN-1645-15-50-15-LRR (AC or WC) | ELPN-1645-4-50-20-HRR (AC or WC) |
| Optical Characteristics | ||
| Mode of Operation | Acousto-optically Q-switched | |
| Wavelength, nm | 1645, 1617 | |
| Linewidth FWHM, nm | <0.5 nm | |
| Maximum Average Power, W | 25 | 25 |
| Maximum Peak Power, kW | 1000 | 200 |
| Maximum Pulse Energy*, mJ | 35 | 5 |
| Pulse Duration, ns | 30-100 | 25-220 |
| Repetition Rate**, kHz | 0.01-2 | 2-100 |
| Polarization | Linear, >100:1 | |
| Output Beam Mode, M² | ≤1.2 | |
| Beam Diameter (FW, 1/e²), mm | 1.5 | |
| Warm-up Time, min | 5 from standby, 15 from cold start | |
| General Characteristics | ||
| Pump Laser Cooling | Air-cooled | |
| Pump Laser Dimensions (W × D × H), mm | 448 × 420 × 268 | |
| Optical Head Cooling | Air-cooled or water-cooled | |
| Optical Head Dimensions (W × D × H), mm | 270 × 300 × 110 (air-cooled) 260 × 206 × 72 (water-cooled) | |
| Supply Voltage 50-60 Hz, VAC | 110-240 | |
| Power Consumption, W | 100-800 | |
