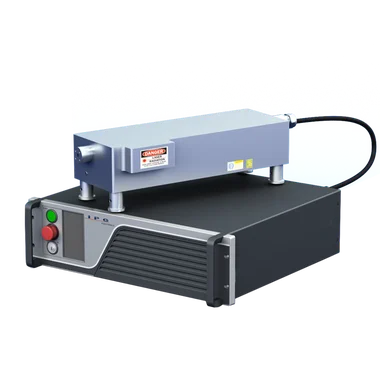

CL-SF/CLT-SF
Product Description
IPG Photonics offers single-frequency Cr:ZnSe/S
continuous wave Mid-IR lasers. These lasers are
offered as either fixed wavelength CL-SF or tunable
CLT-SF models. The tunable range is between
1.9-2.6 μm with a custom selected central
wavelength. The lasers feature a linewidth range
of <1 MHz and TEM00 beam mode quality. The SF
series Mid-IR lasers provide up to 5 W of output
power. These lasers are pumped by IPG’s efficient
and reliable erbium (1.6 μm) or thulium (1.9 μm)
CW fiber lasers. Single-frequency Cr:ZnSe/S lasers
are used in scientific and R&D applications such as
high resolution spectroscopy, OPO pumping and
free space communications.
Technical Specifications
Specification
| Parameter | CL-SF | CLT-SF |
| Optical Characteristics | ||
| Mode of Operation | CW | |
| Central Wavelength Tuning Range*, nm | Customer Selected in 1.9-3.0 µm | Customer Selected in 1.9-3.0 µm |
| Spectral Bandwidth, MHz | 0.5-10, Typ. <1 | |
| Output Power**, W | 0.2-5, Typ. 3 | |
| Polarization | Linear, Horizontal >100:1 | |
| Beam Quality, M² | <1.2, Typ. <1.1 | |
| Beam Diameter*** (FW, 1/e²), mm | 3 ±0.5 | |
| Beam Divergence, mrad | 0.2-0.5, Typ. 0.3 | |
| Warm up Time, min | 15 from Standby, 60 from Cold Start | |
| General Characteristics | ||
| Pump Laser | IPG Photonics ELR or TLR CW Fiber Laser | |
| Pump Laser Dimensions (W × D × H), mm | 448 × 403 × 132 | |
| Optical Head Dimensions (W × D × H), mm | 150 × 345 × 87 | |
| Supply Voltage 50-60 Hz, VAC | 110-240 | |
| Power Consumption, W | 200 Typ. | |
