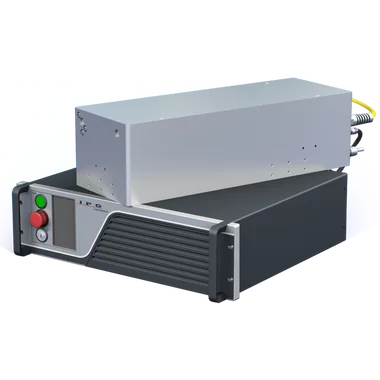

CLPF/CLPFT
Product Description
CLPF Cr:ZnSe/S ultrafast mid-IR lasers address a
wide range of scientific, industrial and biomedical
applications. CLPF lasers are pumped by IPG efficient
and reliable CW erbium fiber lasers and provide
femtosecond pulses in the spectral range of 2-3 μm
with average output powers of one to several Watts
and with pulse energies in the range of tens nanojoules
to millijoules. Both fixed wavelength and wavelength
tunable models are available.
Technical Specifications
Specification
| Parameter | CLPF-2400-15-30-1 | CLPF-2400-50-25-4* | CLPF-2400-EA |
| Central Wavelength Range*, nm | 2200–2600, typ. 2400 | ||
| Spectral Bandwidth FWHM, nm | 300 | 600 | 60 |
| Average Power, W | >1 | >4*** | 0.01–4*** |
| Pulse Energy, nJ | 15 | >50 | 10⁴–10⁶ |
| Repetition Rate***, MHz | 80 | 0.001–0.5 | |
| Pulse Duration, fs | 30 | 25 | 100 |
| Long Term Power Stability****, % | 1 | ||
| Polarization | Linear | ||
| Output Beam Mode, M² | ≤1.2 | ||
| Beam Diameter (FW, 1/e²), mm | 1.5 ±0.5 | 2.0 ±0.5 | 2.0–10 |
| Beam Divergence, mrad | <0.5 | ||
| Warm-up Time, min | 15–60 | ||
| Parameter | Value | ||
| Integrated Pump Laser | IPG Photonics Erbium CW Fiber Laser | ||
| Pump Laser Dimensions (W×D×H), mm | 448 × 403 × 132 | ||
| Optical Head Dimensions (W×D×H), mm | 152 × 433 × 122 | ||
| Supply Voltage 50–60 Hz, VAC | 110–240 | ||
| Power Consumption, W | 200 typ. | ||
