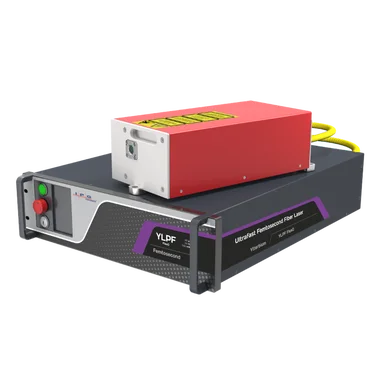

YLPF-FLexO
Product Description
IPG Photonics’ YLPF-FlexO femtosecond laser offers unprecedented flexibility in tailoring laser pulse
parameters to applications. The laser system incorporates IPG’s proprietary pulse shaping technology that
enables users to generate desired temporal pulse shapes - from the shortest, near-transform-limited pulse
to a variety of optical waveforms.
Technical Specifications
Specification
| Parameter | Value |
| Central Wavelength*, nm | 1055 ± 15 |
| Spectral Width*, nm | >80, typ. 95 |
| Average Power, mW | >550 |
| Pulse Energy, nJ | >50 |
| Repetition Rate, MHz | 11 ± 0.5 |
| Temporal Pulse Shape | Programmable |
| Programmable Device | 2D LCOS Spatial Light Modulator |
| Pulse Control Variables** | Phase and amplitude* |
| Transform Limited Pulse Duration (FWHM), fs | <50, typ. sub-40 |
| Programmable Time Range***, ps | >6 |
| Polarization | Linear, 100:1 |
| Beam Quality | M² < 1.2 |
| Beam Diameter****, mm | 3 ± 0.3 |
