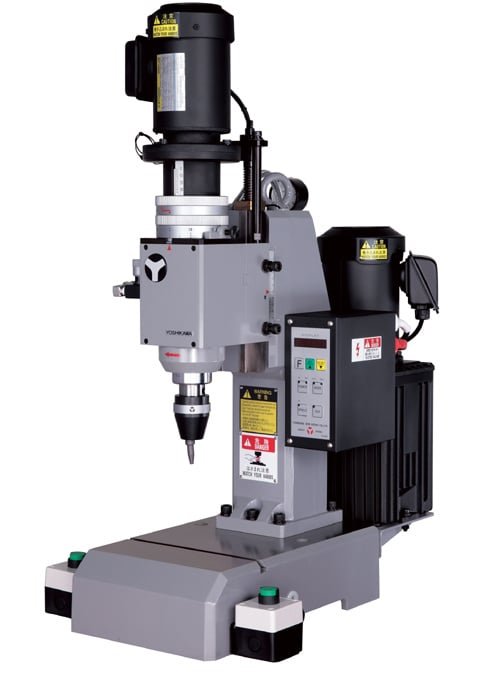

US-36
Product Description
Available in a wide range of sizes from small to extra large, this is the most standard hydraulic riveting machine.
You can choose from a wide lineup to suit your riveting capabilities and working conditions.
Technical Specifications
Specification
| Riveting Capacity | φ0.5～φ6mm Mild steel | Pump motor | 400w AC200V 50/60Hz |
| Maximum pressure | 6.9kN (700kgf) | Power Source | 3φ AC200V 50/60Hz 1.2kVA |
| Cylinder Stroke | 0 ~ 35mm | Installation floor size | W270xD450mm |
| Working Time Timer | 0.2～9.99sec | Height | 992 mm |
| Spindle motor | 200w AC200V 50/60Hz | weight | 150kg |
