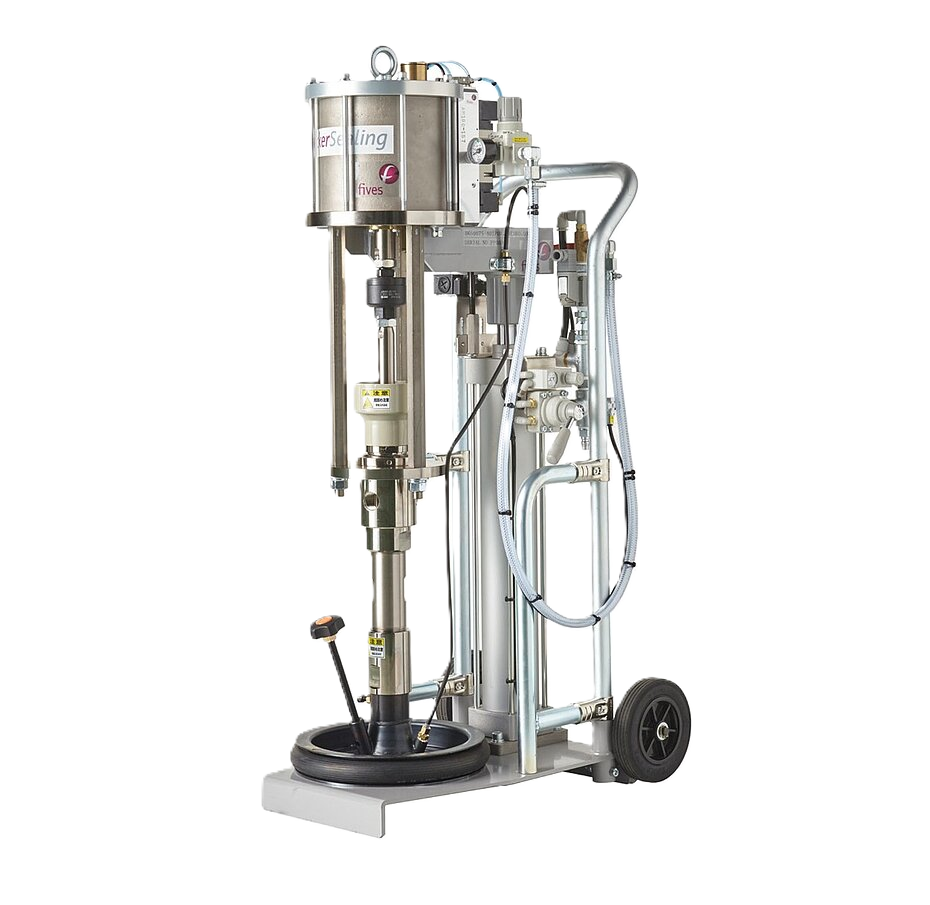

DeckerSealing BK Series
Product Description
The DeckerSealingTM BK Series is a cost-effective and low maintenance pumping solution.
Ideal for automotive applications, these pumps are widely used for windscreen glazing and structural bonding in the body of the car. They are also well suited to gluing applications in the electric vehicle sector, as well as specialist glass applications.
There are two versions of the BK available. Choose the single-piston BKS60075 for lower viscosity products or the double-piston BKT60075 for applications that require higher pressure for high viscosity materials.
A range of additional options and features ensure that your DeckerSealingTM BK Series is the perfect solution for you:
Mobile cart
Optional heating system
Single or double elevator
Optional 20 gallon follow plate
Technical Specifications
Specification
| Category | BKS60075 | BKT60075 |
| Product Type | BKS60075 | BKT60075 |
| Pressure Ratio | 60:1 | |
| Max Pressure (MPa) | 30 | |
| Capacity (cc/stroke) | 75 | |
| Max Flow Rate (l/min) | 2.4 | |
| Elevator Type | Single (Ø80 mm) | Double (Ø80 mm) |
Press Force (N) (at Air=0.5 MPa) | 2150 | 4300 |
| Outlet Size (PT) | 3/4" | 3/4" |
| Dimensions (W×L×H, mm) | 429 × 570 × 1078 | 363 × 620 × 1078 |
| Weight (kg) | 79 | 90 |
