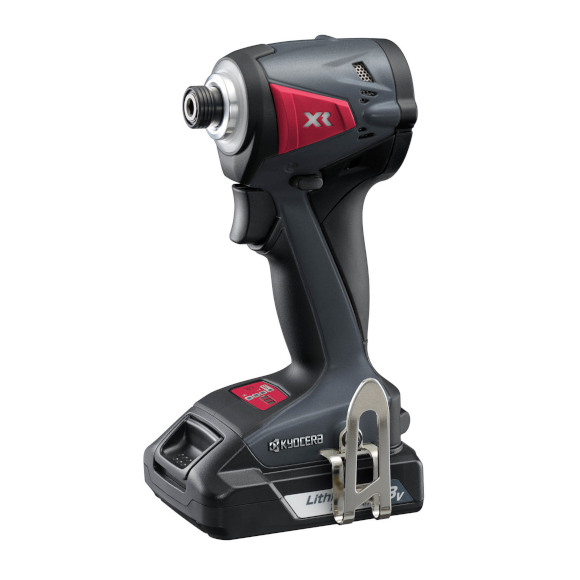

DID11XR
Product Description
18V class shortest head 99.4mm *
Lightest and most compact body 1.1kg *
Maximum tightening torque: 165N･m
Includes one battery pack of each capacity (1,500mAh/5,000mAh)
Switch between 5 modes with the unique 3-color illuminated side button
Three-bulb LED light that does not create a shadow at the tip
Dual-layer grip protects the worker's hands
Dustproof and waterproof body conforming to IP56 international standards
Comes with a carrying case for ease of use
Technical Specifications
Specification
| Motor | DC 18V brushless |
| Capacity | M4 - M8 (screw) / M5 - M14 (bolt) |
| Max torque | 165 N･m |
| Roration mode | Low / Middle / High / Teks / Lock-on |
| No load speed | 0 - 900 / 0 - 2,000 / 0 - 3,200 min-1 |
| Weight | 1.1kg (with 1.5Ah battery) and 1.4kg (with 5.0Ah battery) |
