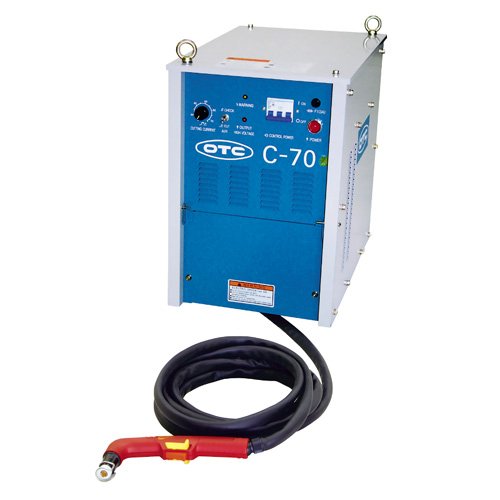

A-70 / C-70
Product Description
Super Plasma C-70 Transistor Controlled Air-Plasma Cutting Machine - Less electromagnetic disturbance without High-frequency - Cutting speed is improved approx. 15% compare with previous models. - Maximum cutting capacity is up to 35mm. - High 60% duty at 70 Amps. - High quality cutting is realized by stable plasma arc supply
Technical Specifications
| Category | Specification |
| Model | MRAF-70 |
| Rated Input (kVA) | 12.1 (3-phase) |
| Frequency (Hz) | 50/60 |
| Rated Duty Cycle (%) | 60 |
| Rated Output Current (A) | 70 |
| Rated Load Voltage (V) | 140 |
| Max. Open Circuit Voltage (V) | 245 |
| Dimensions (W×D×H, mm) | 330 × 540 × 520 |
| Approx. Weight (kg) | 82 |
| Cutting Torch | |
| Category | Specification |
| Model | CT-0701 or CTP-0701 |
| Rated Current (A) | 70 |
| Rated Duty Cycle (%) | 60 |
| Cooling System | Air-cooled |
| Cable Length (m) | 10 |
| Using Gas | Air |
| Approx. Weight (g) | 170 (excluding cable) |
