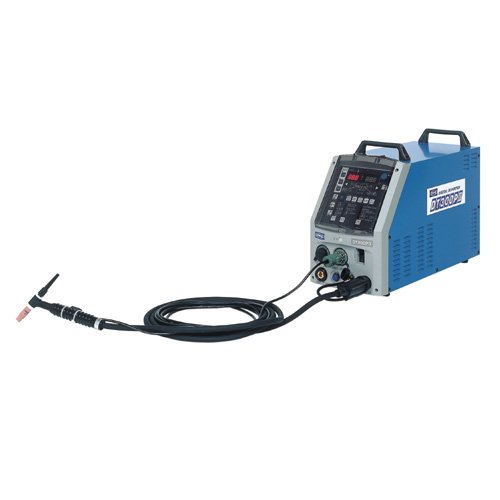

DT-300PII
Product Description
Digital Inverter Welding Machine DT300PII The most intelligent TIG Welding Machine with TIC SYNERGIC FUNCTION for deciding automatically appropriate welding condition.
Technical Specifications
| Item | Specifications | |
| Model | DT300PI | |
| Welding power source type | DT-300P (CE-Marking) | |
| Rated input voltage | 400 ±15% | |
| Phase | 3 phase / Single phase | |
| Rated input | kVA: TIG=10.1(8.1)kW, Stick=15.2(9)kW; Single phase: TIG=7.6kW, Stick=8.5(5.5)kW | |
| Range of rated output current | TIG: 4–300, Stick: 10–250 | |
| Rated output voltage | TIG: 20, Stick: 30 | |
| Max. No-load voltage | TIG: 34–300, Stick: 50–250 | |
| Initial crater start current | TIG: 4–300, Stick: 10–250 | |
| Base current range | A | 4–300 |
| Pulse current range | A | 4–300 |
| Pulse frequency range | 0.1–10 | |
| Pulse duty ratio | 5–95% | |
| Pulse width control | Possible to change by Function Key | |
| Arc spot | [On]/[Off]/[Repeat] change type | |
| The number of job memory | 30 | |
| Dimensions (W×D×H) mm | 250×640×395 (without carrying handle) | |
| Weight | 30 kg | |
| Start type | High frequency start / Lift start | |
| Welding torch | AWD-26 / AWD-18 | |
| Rated current | 200 (DC), 160 (AC) / 300 (DC), 280 (AC) | |
| Cooling method | Air-cooled / Water-cooled | |
| Electrode size | (mm) (0.5), (1.0), (1.6), (2.4), (3.2), (4.0) | |
| Cable length | 4 or 8 m |
