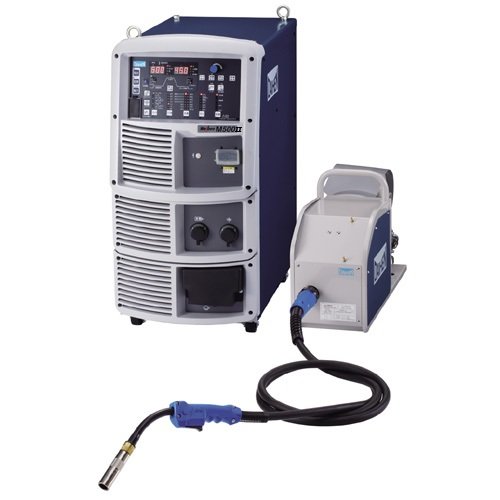

WB-M502
Product Description
Welbee Inverter M500II
Standard model to realize stable arc from low current to high current range!
Technical Specifications
Specification
| Category | Specification | Details |
| Model | Welding Power Source | WB-M502 |
| Input | Rated Voltage | 400V ±15% (50/60Hz) |
| Phase | Three-phase | |
| Rated Input Power | 25.4 kVA (23.1 kW) | |
| Output | Duty Cycle | 100% (continuous use) |
| Continuous Output Current | 500A | |
| Rated Output Current | 500A (MIG/MAG) 400A (STICK) | |
| Rated Load Voltage | 39V (MIG/MAG) 36V (STICK) | |
| Output Current Range | 30~500A | |
| Output Voltage Range | 15.5~39V | |
| Max No-load Voltage | 70V | |
| Features | Memory Slots | 100 welding programs |
| Physical | Dimensions (W×D×H) | 395 × 710 × 810 mm |
| Weight | 77 kg | |
| Cables | Wire Feeder & Ground Cable Model | BKPT-6002 |
| Cable Thickness | 60 mm² |
