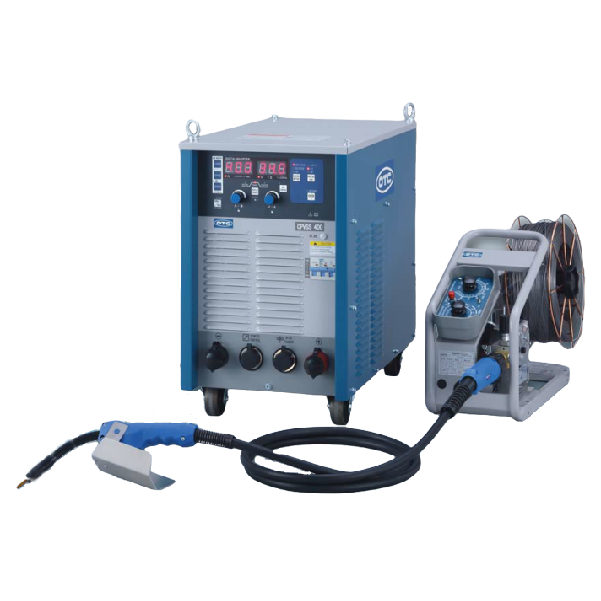

CPVSS-400
Product Description
SEMI-AUTOMATIC WELDING MACHINE WITH AUTO PROTECTION
Makes your welding more efficient,
Provides outdoor welding solutions, and
Ensures safe and stable welding.
Automatic AC/DC, MAG/MIG welding machine
Wind resistance.
Equipped with welding condition management function.
Deeper penetration control
Improves arc stability.
Technical Specifications
Specification
| Parameter | CPVSS-400 |
| Welding power source | |
| - Rated Frequency | Common to both 50 and 60 Hz |
| - Rated input voltage | 380 ±10% / 415 ±10% |
| - Phase | Three phase |
| - Rated input voltage (kVA) | 16.8 / 17.4 |
| - Rated duty cycle (%) | 60 |
| - Rated output current (A) | Self-shielded: 400 / DC stick: 300 |
| - Rated load voltage (V) | Self-shielded: 34 / DC stick: 32 |
| - Output current range (A) | Self-shielded: 30~400 / DC stick: 30~300 |
| - Output voltage range (V) | Self-shielded: 12~34 |
| - Maximum no-load voltage (V) | 72 / 78 |
| - Outside dimension (W×D×H) (mm) | 345×632×580 (Excluding eyebolts) |
| - Mass (kg) | 54 |
| Base metal side power cable | |
| - Model | BKPT-5002 |
| - Cable size (mm²) | 50 |
| Wire feeder unit | |
| - Model | CMN-6401 |
| - Wire diameter (mm) | (1.6), (1.7), 2.0 |
| - Wire used | Self-shielded flux cored wire |
| - Wire feed speed (m/min) | 18 (Maximum) |
| - Outside dimension (W×D×H) (mm) | 209×500×365 (Excluding wire reel and projections) |
| - Mass (kg) | 8 |
| Welding torch | |
| - Model | WTN3510-SD / WTN3510-MD |
| - Rated welding current (A) | 350 |
| - Suitable wire diameter (mm) | (1.6), (1.7), 2.0 |
| - Rated duty cycle (%) | 60 |
| - Cooling system | Air cooling |
| - Cable length (m) | 3.0 / 4.5 |
