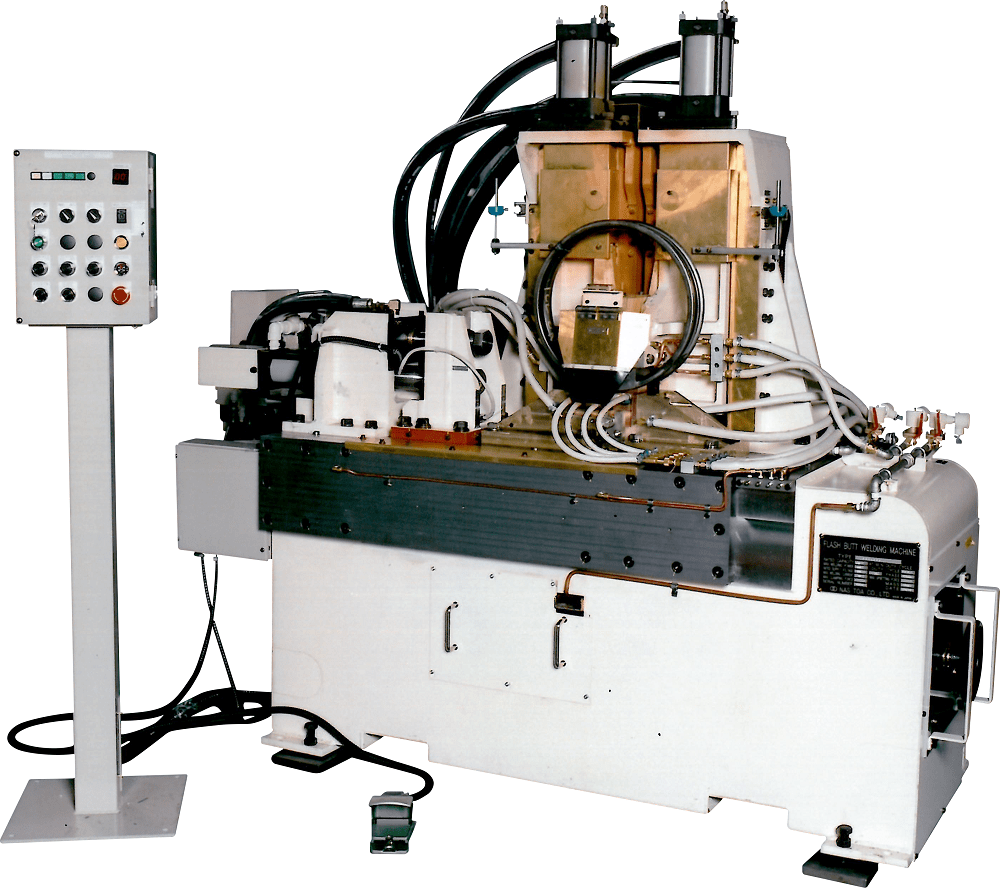

Flash welding machine
Product Description
High-speed, high-quality butt welding possible
A ring-shaped workpiece can be manufactured by flash welding the end faces of the workpiece molded into a C-shape.This improves material yield
Flash welding is a resistance butt welding. welding current is passed under condition of the end faces of ring lightly contacted, give a strong ectrode force to contacting faces after sparked, melted and scattered at contace face(welded surface).
Technical Specifications
Specification
| Model | Rated capacity (kVA) | Maximum short circuit current (A) | Upsetting force (kN) | Clamping force (kN) |
| FO-140-3C | 140 | 40,000 | 80 | 140 |
| FO-190-3C | 190 | 48,000 | 60 | 120 |
| FO-230-3C | 230 | 45,000 | 120 | 240 |
| FO-RCD-1200-3C | 1,200 | 150,000 | 800 | 1,600 |
