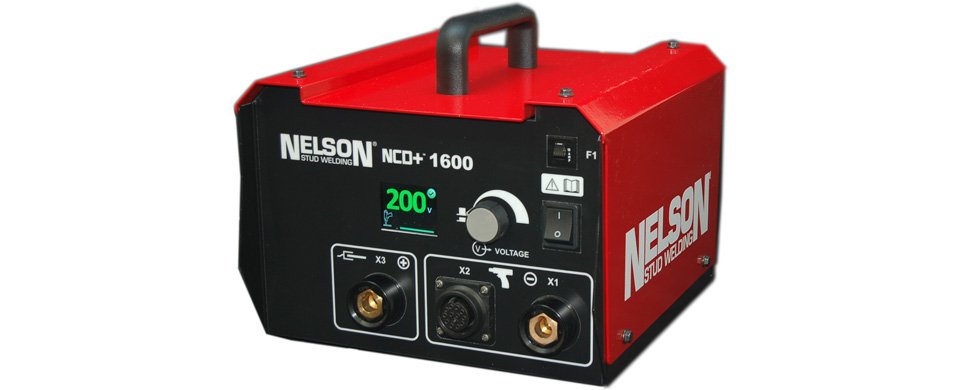

Nelson NCD+ 1600 Equipment
Product Description
NCD+ is a dependable, new-generation capacitor discharge (CD) stud welding power source developed around the traditional transformer rectifier CD power topology, controlled by a high-performance 32-bit microprocessor with integrated DSP technology. It is the ideal tool to weld up to 3/8” (M8) CD studs with the contact CD or gap CD welding process to eliminate drilling, tapping, grinding, and polishing operations.
Available in Europe
Technical Specifications
Specification
| Spesifikasi | NCD+ 1000t | NCD+ 1600t |
| Thread Diameter | 1/4”-20 (M6) | 5/16”-18 (8mm) |
| Weld Base Diameter | 5/16” (8mm) | 3/8” (10.5mm) |
| Welding Process | Contact CD, Gap CD | Contact CD, Gap CD |
| Stored Energy (Ws) | 1080 | 1620 |
| Cap Voltage (V) | 70—200 (Stepless) | 70—200 (Stepless) |
| Capacitance (µF) | 54,000 | 81,000 |
| Weld Rate (Studs / Minute) | 18@100V, 8@200V | 14@100V, 6@200V |
| Dimensions | 12 5/8” x 12” x 8 3/4”(32 cm x 31 cm x 22 cm) | Sama |
| Weight | 24 lb. (10.9 kg) | 26 lb. (11.8 kg) |
| Input Power Connection | 1 phase 220-230V, 50/60 Hz @ 5A1 phase 110-120V, 50/60 Hz @ 10A*Specify input voltage when ordering | Sama |
| Stud Material | Mild steel, stainless steel, aluminum, brass, copper, Ni-based superalloys, titanium | Sama |
| Guns | NCD+ contact gun, NCD+ auto gap gun | Sama |
| Ingress Protection Rating | IP23 (outdoor operation) | Sama |
| Safety Standard Compliance | ANSI/IEC/EN 60974-1 | Sama |
| EMC Compliance | ANSI/IEC/EN 60974-10 (CE Model Only) | Sama |
| Idle Power (W) | 25 or Less | Sama |
| Efficiency | 60% | Sama |
| Display | Full Color TFT, LED backlit | Sama |
