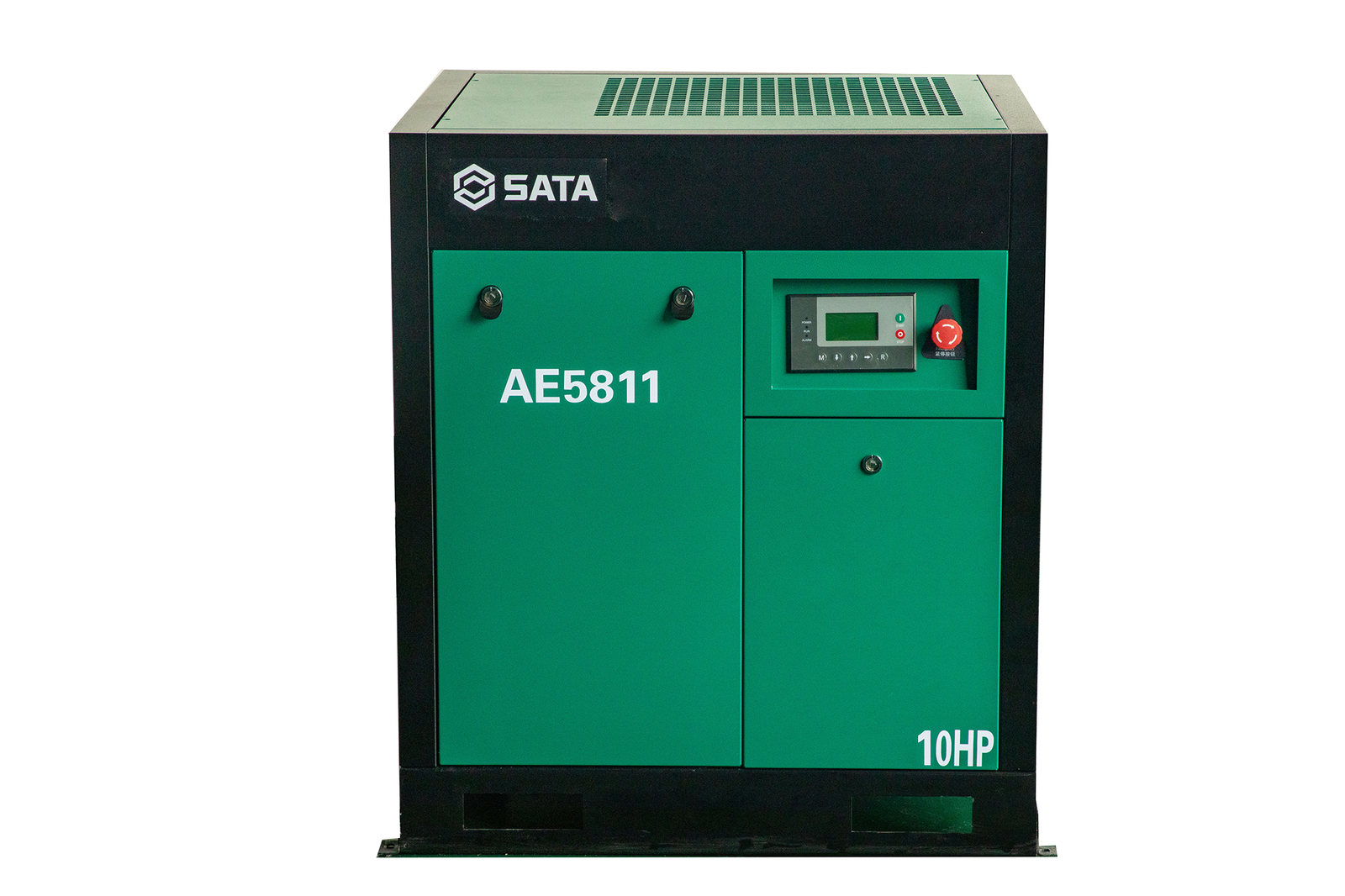

AE5811 Rotary Screw Compressor-10HP
Product Description
Introduction
● High efficiency and energy-saving main unit
● Stable intake valve group
● Rotary external oil filter and water-oil separator, easy to maintain
● Low noise, small size, high energy efficiency
Technical Specifications
Specification
| Product No | AE5811 |
| Net Weight (kg) | 195 |
| Discharge pressure (Mpa) | 0.8 |
| Discharge volume (M³/Min) | 1.0 |
| Cooling method | Air-cooled |
| Noise (Db) | ≤78 |
| Motor power (kW) | 7.5 |
| Motor speed (RPM) | 2945 |
| Motor starting method | Direct start |
| LxWxH (CM) | 80X65X87 |
| Warranty Terms | 1 year |
