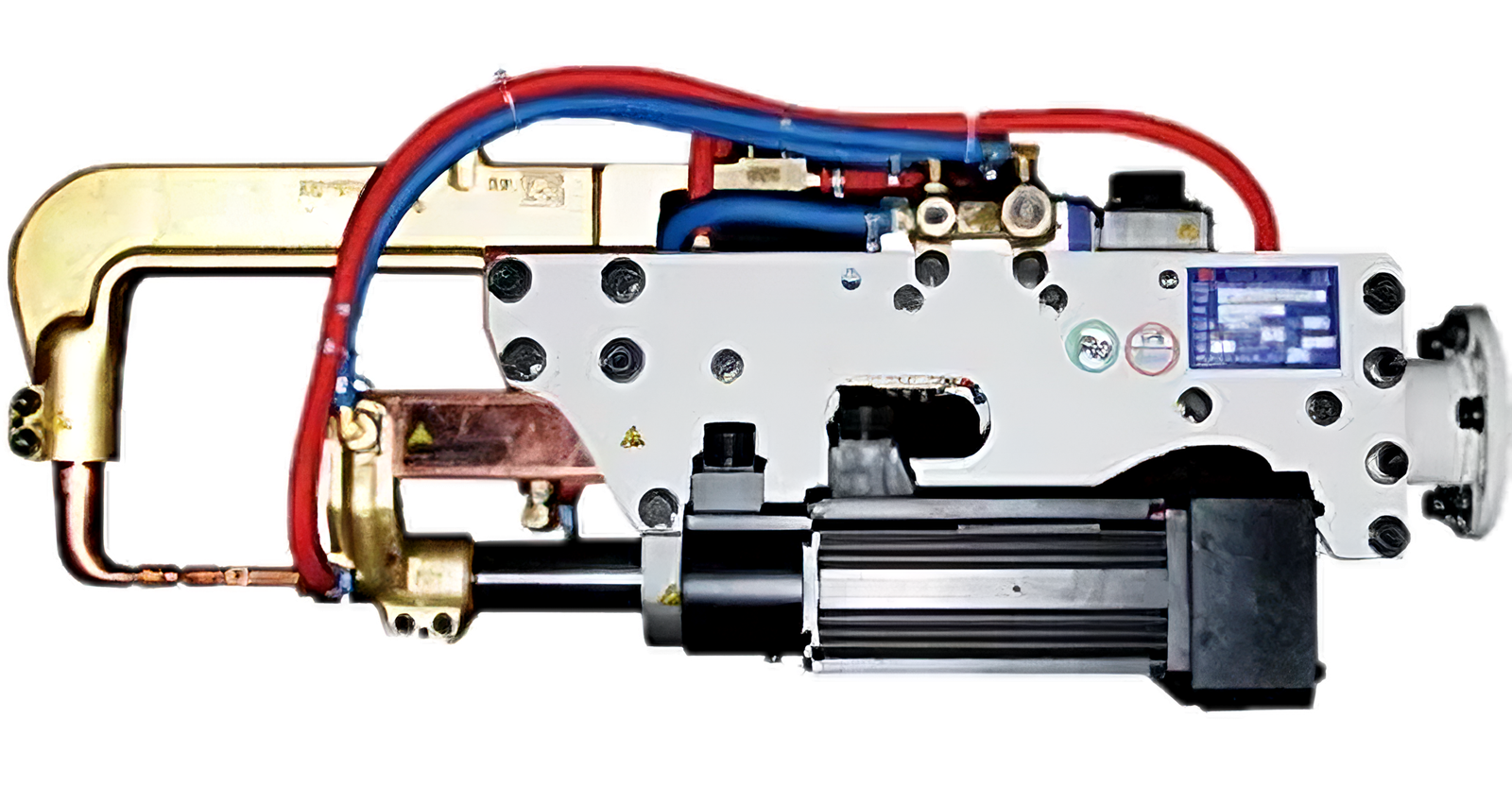

Servo Spot Gun S Type C
Product Description
## Servo Spot Gun ### Improvement of welding quality and shorter cycle time enhances work efficiency. * Optimal pressurizing force can be set for each weld. * Softer touch produces less pressure indentations and less noise. * Produces no exhaust air and does not contaminate air. * Synchronized operation with robots is possible. * Squeeze time has been greatly reduced. * Power consumption is less than half of that of an air gun. ## Servo Spot Gun S Type C * Compact and lightweight * Dust proof and drip proof specification * Employment of common components has eliminated needs for spare components
Technical Specifications
| Power source | Maximum short circuit current (A) | Equivalent continuous current (A) | Maximum electrode force (kN) | Dimensions (mm) | Stroke length (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| Single-phase AC | 15,000 | 4,110 | 6.0 | 70～400 | 100～200 | 101～130 |
| DC inverter | 15,000 | 4,110 | 6.0 | 70～400 | 100～200 | 84～103 |
