DENGENSHA TOA
Click to zoom • Drag to pan

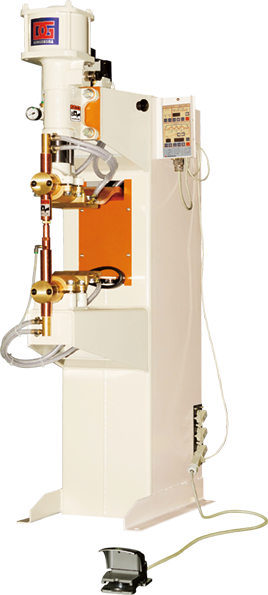

Single-Phase AC NDZ
Product Description
* Basic model that supports rich variations. * High-precision detection and control function for secondary current. * Initial current heat rate can be set freely, which is highly effective for welding nuts. * You can select from 3 types of current control systems.
Technical Specifications
Specification
| Model | Rated capacity(kVA) | Maximum short circuit current (A) | Maximum electrode force (kN) |
| NDZ-035-46B* | 35 | 17 | 6 |
| NDZ-035-66B* | 35 | 15 | 6 |
| NDZ-050-46B* | 50 | 20 | 6 |
| NDZ-050-41B* | 50 | 20 | 10 |
| NDZ-050-66B* | 50 | 17 | 6 |
| NDZ-070-41B* | 70 | 25 | 10 |
| NDZ-070-61B* | 70 | 21 | 10 |
| NDZ-100-41B* | 100 | 33 | 10 |
| NDZ-100-61B* | 100 | 27 | 10 |
