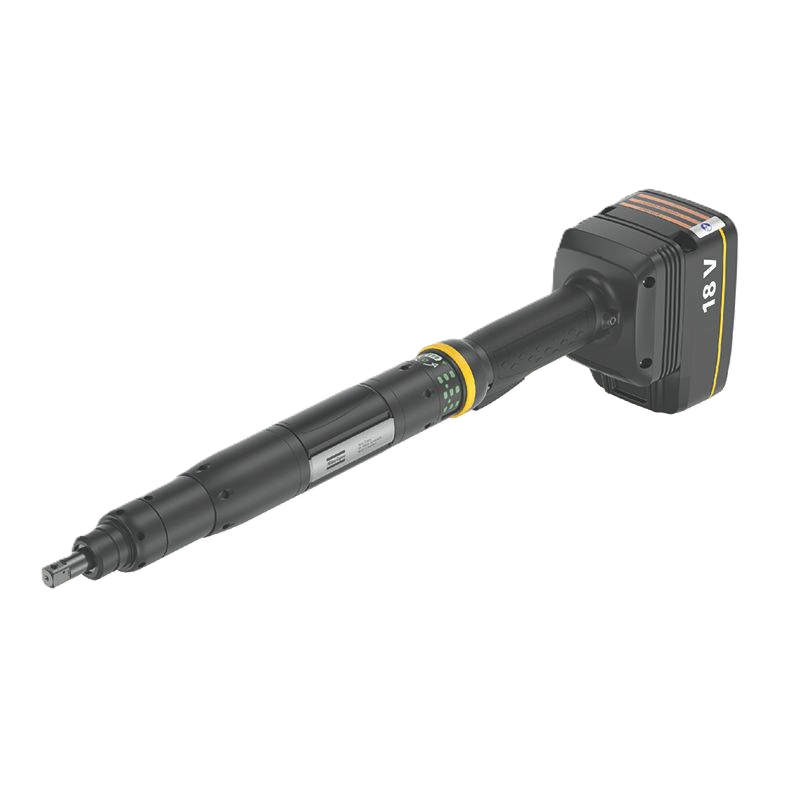

ITB-S61-30-10
Product Description

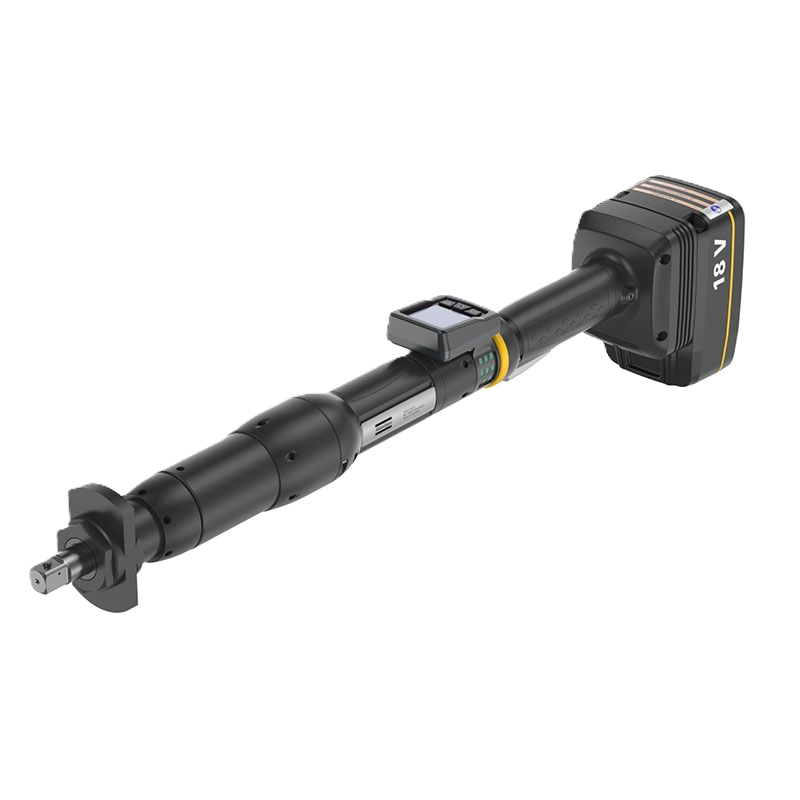

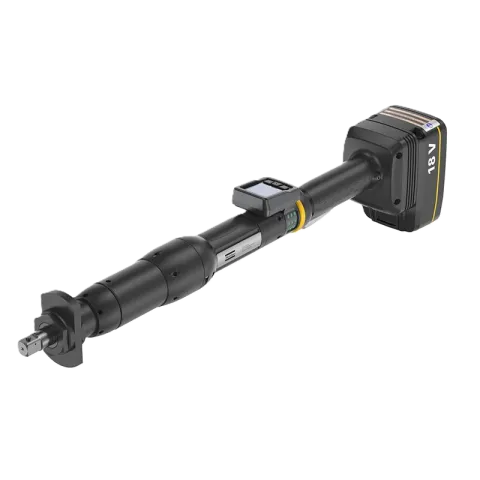

Straight Cordless Nutrunner Tensor ITB-S, with its wide range of models and accessory options brings productivity and assembly quality to the next level. ITB-S offers values including TrueAngle angle compensation, faster tightening speeds and improved wireless signal strength. Tensor ITB-S is part of the Tensor IxB Family which share an integrated controller platform. It has the controller functionality inside the tool, allowing direct integration with station accessories and production system without the need of an intermediate physical controller box. This opens a world of new opportunities
Technical Specifications
| Category | Parameter | Imperial | Metric | Standards/Notes |
| Performance | Max Speed | 907 rpm | 907 rpm | |
| Torque Range | 5-25 ft-lb | 6.8-33.9 Nm | ≤5% variation | |
| Noise Level | <70 dB(A) | <70 dB(A) | ISO15744 compliant | |
| Vibration | <2.5 m/s² | <2.5 m/s² | ISO28927-2 compliant | |
| Power System | Motor | 1500W DC, 35V | 1500W DC, 35V | |
| Battery | 18/36V Li-Ion | 18/36V Li-Ion | 1 battery | |
| Weight (tool only) | 4.2 lb | 1.9 kg | ||
| Weight (with battery) | 5.3 lb | 2.4 kg | ||
| Dimensions | Length | 18.4" | 468.2 mm | |
| Width | 2.9" | 74.5 mm | ||
| Height | 3.5" | 88.5 mm | ||
| CS Distance | 0.67" | 16.9 mm | ||
| Output Size | 3/8" square | 9.5 mm square | Male drive | |
| Design | Model Type | Straight | Straight | |
| Shut-off System | Transducer | Transducer | ||
| Tool Family | ITB | ITB | ||
| Certifications | Safety Standards | EN 62841 series | EN 62841 series | |
| EMC Standards | EN 300 328 | EN 300 328 | ||
| Certifications | ETL, FCC, EAC | ETL, FCC, EAC | KC: No | |
| Directives | EU MD, RoHS, RED | EU MD, RoHS, RED | Compliant |
