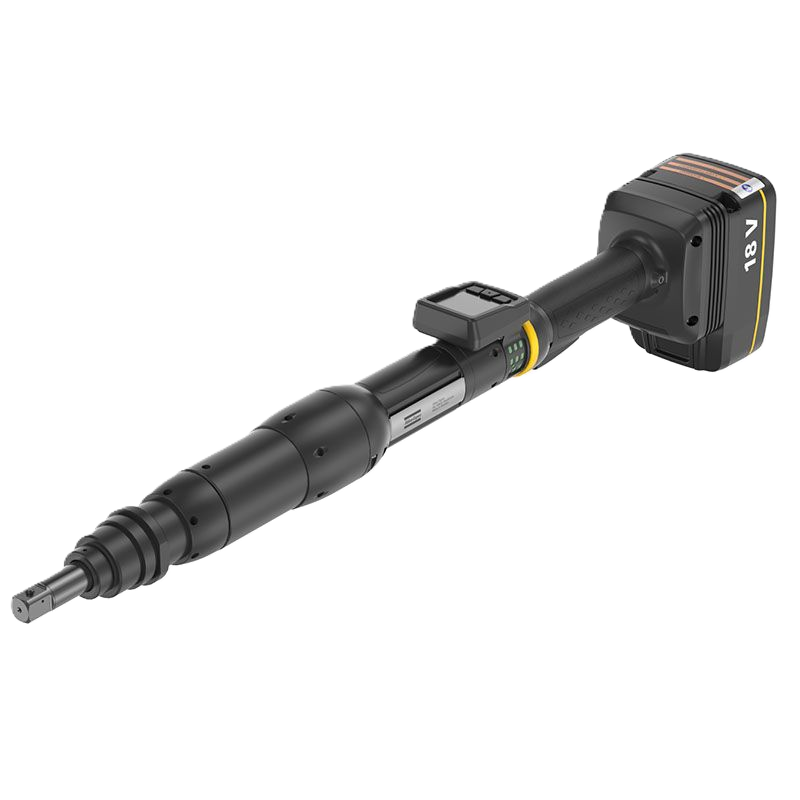

ITB-S61-120-13-T25-HMI
Product Description
Straight Cordless Nutrunner Tensor ITB-S, with its wide range of models and accessory options brings productivity and assembly quality to the next level. ITB-S offers values including TrueAngle angle compensation, faster tightening speeds and improved wireless signal strength. Tensor ITB-S is part of the Tensor IxB Family which share an integrated controller platform. It has the controller functionality inside the tool, allowing direct integration with station accessories and production system without the need of an intermediate physical controller box. This opens a world of new opportunities.
Technical Specifications
specification
| Category | Specification |
| Speed | Max: 307 r/min |
| Noise & Vibrations | Sound pressure: <70 dB(A) Vibration: <2.5 m/s² Standards: ISO15744, ISO28927-2 |
| Battery | Li-Ion 36V (1 battery) Weight incl. battery: 7.5 lb (3.4 kg) |
| Torque | Range: 26-88 ft-lb (35-119 Nm) Scatter: ≤5% |
| Design | Straight model Square male output Shut-off: Transducer Tool family: ITB |
| Dimensions | Length: 556.7 mm Width: 74.5 mm Height: 89.5 mm CS distance: 22.75 mm |
| Weight | 6.4 lb (2.9 kg) without battery |
| Power | 1500W DC motor 35V operating voltage |
| Certifications | ETL, EAC, FCC, IC EU Standards: EN 62841 series UKCA compliant |
| Compliance | EU Directives: MD, RoHS, RED UK Regulations: 2008/1597, 2012/3032, 2017/1206 |
| WEEE Category | 4 (Large equipment >50cm) |
