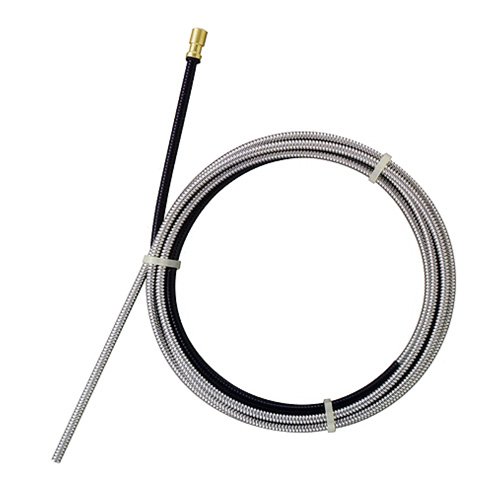

Liner
Product Description
**Basic Function** * Flexible guide tube for stable wire feed.
Technical Specifications
| Part Number | Applicable Torch | Remarks |
|---|---|---|
| U4353Q01 | WT 1800 (WT 2000 option) | 3m (0.6-0.9mm) |
| U4186Q01 | 3m (0.9-1.2mm) | |
| U4187Q01 | WT 2000 | 4m (1.0-1.2mm) |
| U4187H01 | 4m (0.8-0.9mm) option | |
| U4170H02 | 3m (0.9-1.2mm) | |
| U4535Q01 | WT 3500 / 3510 (WT 3520 / 5000 option) | 4.5m (1.0-1.2mm) |
| U4172H01 | 6m (1.2mm) | |
| U4173Q04 | 3m (1.2-1.6mm) | |
| U4537Q01 | WT 3520 / 5000 (WT 3510 option) | 4.5m (1.2-1.6mm) |
| U4175Q04 | 6m (1.4-1.6mm) |
