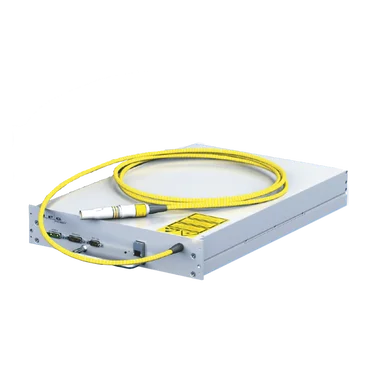

Visible Nanosecond Fiber Laser Modules
Product Description
VLM/VLR High Power Series of broadband visible
fiber lasers provide up to 200 W average power and
flexible choice of operating wavelength in the range of
525 to 635 nm. Designed with IPG highly efficient and
reliable fiber laser technologies, this series of lasers
features high beam quality with either free-space or
fiber beam delivery. The all fiber laser technology
directly enables adjusting the average power over
the full range while maintaining high beam quality
and high power stability. For user convenience, these
lasers are packaged as either OEM modules (VLM) or
end-user friendly 19” rack mount units (VLR). Due to
compact dimensions, industrial grade design and low
power consumption, VLM/VLR High Power lasers are
ready for integration into customer’s systems in the
field ranging from laser shows and cinema projectors
to medical and scientific applications.
Technical Specifications
Specification
| Parameter | Value | |
| Wavelength*, nm | 525 to 635 | |
| Bandwidth, nm | up to 10 | |
| Mode of Operation | Pulsed | |
| Average Power**, W | up to 200 | |
| Pulse Repetition Rate***, MHz | >10 | |
| Pulse Duration, ns | 4.5 | |
| Power Tunability, % | 1-100 | |
| Power Stability****, % | ±0.5 | |
| Beam Parameter Product, mm × mrad | <6 (multi-mode option, 100 µm fiber) | |
| Beam Mode Quality, M² | <1.5 (single-mode option) | |
| Parameter | Module | Rack Unit |
| Laser Dimensions (W × D × H), mm | 329 × 529 × 70 | 448 × 678 × 132 |
| Laser Head Dimensions (W × D × H), mm | 130 × 200 × 45 (single-mode option) | |
| Laser Module or Rack Cooling | Water-cooled | |
| Laser Head Cooling | Passive Air-cooling (single-mode option) | |
| Supply Voltage | 48 VDC | Single-phase 50/60 Hz, 200-240 VAC |
