EV-Flex System

Name: EV-Flex System
Brand: IPG PHOTONICS
Availability: InStock

Product Description

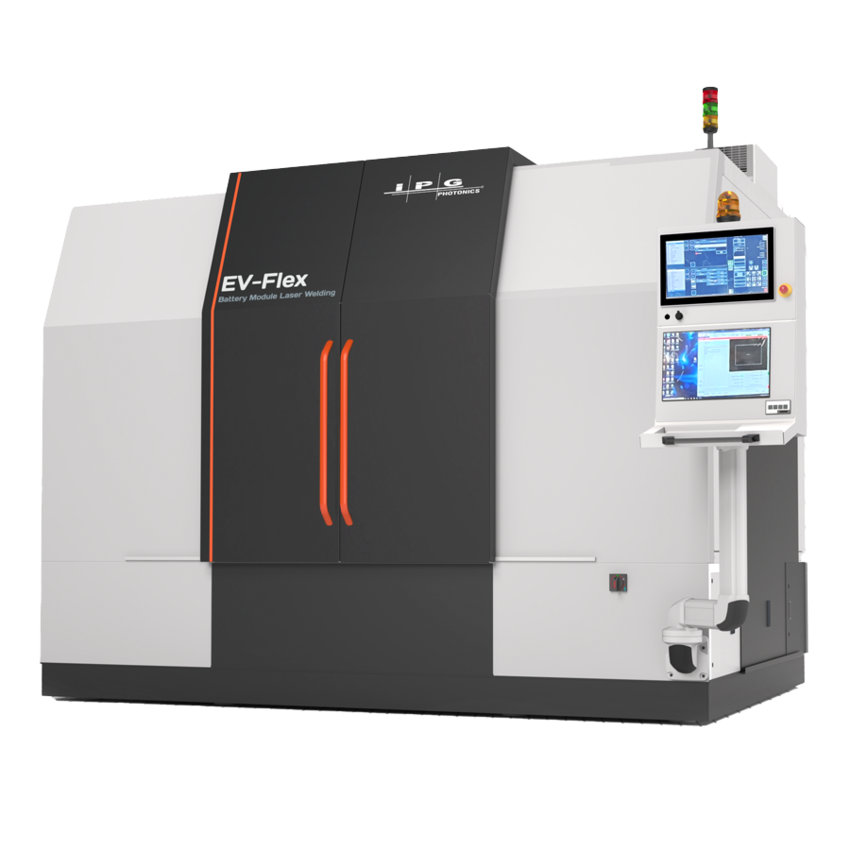

EV-FLEX battery module welding systems are
fully automatic laser processing solutions
for welding cylindrical, prismatic and pouch
cells interconnecting busbars. Systems can be
configured for manual or conveyor-fed part
loading and are suitable for process development,
welding of prototypes, and small volume or mass
production. Integration of conveyor and part
transport systems is an available option.

Technical Specifications

Specification

Item	Description
Laser Source	IPG Single and Multi-mode industrial fiber lasers from 1000 to 6000 W
Welding Head	IPG 2D High Power Scanner
Battery - max size (L x W x H, mm)	1200 x 1000 x 300
Battery - max weight, kg	500
Scanner Focal Length, mm	254 or 415 Options
Welding Process Area, mm	Gantry Travel: 750 x 500 x 200 Scanner Working Area – F254 Lens: 860 x 610 Scanner Working Area – F415 Lens: 950 x 700
Weld Positioning Accuracy, mm	± 0.1 (When using vision alignment position correction)
Motion Control	Siemens 3-axis CNC control
Laser Safety Enclosure	Class 1
Dimensions (L x W x H, mm)	3500 x 2500 x 2900
Weight, kg	4100
Operating Ambient Temperature, °C / °F	5 – 45 / 41 – 113
Relative Humidity	< 60 %, no condensation or frost

Item	Description
Laser Source	Adjustable Mode Beam (AMB) 2/4 kW core/ring Single-mode or multi-mode Independent core and ring power control YLS 1–2 kW Single-Mode 4–6 kW Multi-Mode
Real-time weld measurement	LDD-700
Loading	Front: Manually or by means of a conveyor system
Clamping Device	Customer and component specific
Position adjustment for x-, y-, and z-direction & quality monitoring	All functions of the LDD-700 system can be used for position and quality control as well as position correction within the system accuracy of ±0.1 mm
Laser power monitoring	Integrated power meter for automatic, programmable measurement
